Lobster Sports Elite Two Tennis Ball Machine

1. Въведение

This manual provides comprehensive instructions for the safe and effective use of your Lobster Sports Elite Two Tennis Ball Machine. Please read this manual thoroughly before operating the machine and retain it for future reference. The Elite Two is designed to enhance your tennis practice with advanced features and reliable performance.

2. Продуктът свършиview и функции

The Lobster Sports Elite Two is a portable, battery-operated tennis ball machine offering a range of features to simulate various match play scenarios. Its design focuses on durability, ease of transport, and versatile training options.

• Adjustable Ball Speed & Spin Control: Fine-tune your practice sessions with adjustable ball speeds ranging from 10 to 80 MPH. Simulate gentle volleys to high-speed ground strokes while adding heavy topspin or backspin for competitive game situations.
• Triple Oscillation: Simulate match play by combining both vertical and horizontal oscillation functions to throw tennis balls throughout the entire court - left, right, short, and deep. Perfect the winning forehand, volley, line-drive backhands, drop shots, and more!
• Electronic Elevation Control: Deliver low, medium, or high soaring lobs up to 60-degrees. Perfect your overhead smash high-arc baseline returns, or pin-point net play with a flip of a switch.
• Lightweight, Portable & Easy to Transport: Weighing only 42 LBS, the Lobster Sports Elite Two inverting hopper and folding handle allows for easy transport in any small car or SUV. The 8-inch all-terrain wheels can easily glide with ease over any surface and onto the court.
• Extended Long Battery Life: The battery-operated Elite Two tennis machine has a rechargeable battery that offers 4 to 6 hours of gameplay and includes a Lobster Sports standard battery charger.

Figure 1: The Lobster Sports Elite Two Tennis Ball Machine, shown fully assembled with its hopper extended and handle raised. Dimensions are indicated: 43 inches height, 29 inches length, and 15.5 inches width. The machine is red and white, with tennis balls visible in the hopper.

Figure 2: The Lobster Sports Elite Two Tennis Ball Machine in its folded configuration, ready for transport. The hopper is inverted, and the handle is retracted, reducing its height to 21 inches for easy storage and portability.

3. Настройка и монтаж

Your Elite Two machine comes mostly pre-assembled. Follow these steps for initial setup:

1. Разопаковане: Внимателно извадете машината от опаковката ѝ.
2. Монтаж на бункера: Invert the ball hopper from its storage position to its upright operating position.
3. Разширение на дръжката: Extend the handle to a comfortable height for transport.
4. Зареждане: Before first use, fully charge the external battery using the provided Lobster Sports standard battery charger. Refer to the 'Battery and Charging' section for details.
5. Ball Loading: Load standard tennis balls into the hopper. The machine has a large capacity for extended play.

Фигура 3: Едър план view of the control panel for the Lobster Sports Elite Two. It features dials for Feed (2-12 seconds), Speed (10-80 MPH), and Spin (under spin to top spin). Toggle switches control Power, Elevation (up/down), Vertical Oscillation, Horizontal Oscillation, and Remote control. Status lights indicate low/depleted or on/full battery.

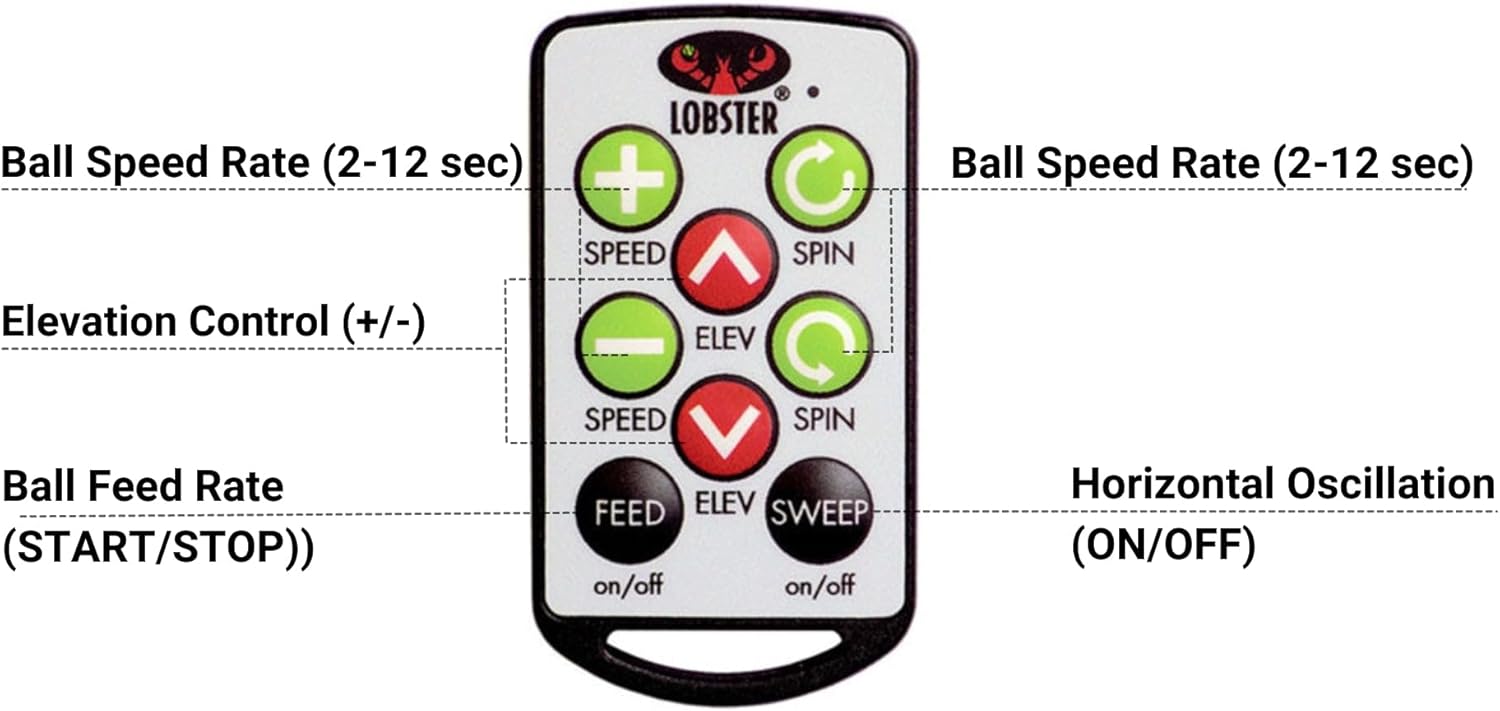

Figure 4: The 10-function remote control for the Lobster Sports Elite Two. It includes buttons for adjusting ball speed rate, elevation control, ball feed rate (start/stop), and horizontal oscillation (on/off). The remote allows for convenient adjustments during practice.

4. Инструкции за работа

The Elite Two offers both manual control via the panel and remote control for convenience.

4.1. Работа с контролния панел

• мощност: Use the 'POWER' toggle switch to turn the machine on or off.
• Feed Rate: Adjust the 'FEED' dial to set the interval between balls (approximately 2 to 12 seconds).
• Скорост на топката: Rotate the 'SPEED' dial to select ball velocity (approximately 10 to 80 MPH).
• Spin Control: Use the 'SPIN' dial to apply underspin or topspin to the balls.
• Надморска височина: The 'ELEVATION' toggle switch controls the vertical angle of the ball launch, allowing for lobs up to 60 degrees.
• осцилация: Use the 'VERTICAL' and 'HORIZONTAL' toggle switches to activate vertical and horizontal ball delivery patterns, respectively.
• Дистанционно: The 'REMOTE' toggle switch enables or disables remote control functionality.

4.2. Работа с дистанционно управление

Ensure the 'REMOTE' switch on the control panel is set to 'on'. The remote allows for quick adjustments to:

• Ball Speed Rate
• Elevation Control (+/-)
• Ball Feed Rate (START/STOP)
• Horizontal Oscillation (ON/OFF)

5. Батерия и зареждане

The Elite Two is powered by an external rechargeable battery, providing 4 to 6 hours of continuous gameplay. To charge:

1. Connect the Lobster Sports standard battery charger to the machine's charging port.
2. Включете зарядното устройство в стандартен електрически контакт.
3. Allow the battery to charge fully before use. The 'STATUS' indicator lights on the control panel will show the charging status (low/depleted or on/full).

6. Поддръжка

Regular maintenance ensures the longevity and optimal performance of your Elite Two machine:

• Почистване: Избършете външността на машината с рекламаamp кърпа след всяка употреба, за да отстраните мръсотията и отломките.
• Качество на топката: Use clean, dry tennis balls. Dirty or wet balls can affect performance and potentially damage internal components.
• Съхранение: Store the machine in a dry, protected area when not in use. Fold the hopper and retract the handle for compact storage.
• Грижа за батерията: Fully charge the battery after each use and before long-term storage to maintain battery health.

7. Отстраняване на проблеми

If you encounter issues with your Elite Two, consider the following common solutions:

• Машината не се включва: Check the battery charge level. Ensure the power switch is in the 'on' position.
• Balls Not Feeding: Verify that the hopper is not empty and that balls are not jammed. Check the feed rate dial setting.
• Inconsistent Ball Speed/Spin: Ensure the speed and spin dials are set correctly. Check that the balls are clean and dry.
• Oscillation Not Working: Confirm that the vertical and/or horizontal oscillation switches are engaged.
• Дистанционното не отговаря: Check if the remote control switch on the main panel is 'on'. Ensure the remote's battery is functional.

For persistent issues, please contact Lobster Sports customer support.

8. Спецификации

9. Гаранция и поддръжка

Гаранция: The Lobster Sports Elite Two Tennis Ball Machine comes with a 2-Year Warranty. Please refer to the warranty documentation included with your product for full terms and conditions.

поддръжка: For further assistance, technical support, or to inquire about replacement parts, please visit the official Lobster Sports webсайта или се свържете с отдела за обслужване на клиенти. Можете също да посетите LOBSTER Store on Amazon.
