1. Въведение и надview
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Dukers DSP72-30M-S3 Commercial Food Prep Table Refrigerator. This 17.5 cu. ft. unit is constructed from durable brushed stainless steel, designed for commercial kitchen environments. It features ample space for food storage and preparation, including a mega top for additional containers. Key features include recessed handles, digital temperature controls, foam insulation for consistent temperatures, self-closing doors, and automatic defrosting. For mobility, the unit is equipped with 4-inch locking casters.
2. Информация за безопасност
Please read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in property damage, personal injury, or death.
- Електрическа безопасност: Ensure the unit is connected to a properly grounded 115V/60Hz electrical outlet with a NEMA 5-15P plug. Do not use extension cords.
- Вентилация: Поддържайте достатъчно разстояние около устройството за правилна вентилация, за да предотвратите прегряване и да осигурите ефективна работа.
- Разположение: Поставете устройството върху равна, стабилна повърхност, способна да издържи теглото му, когато е напълно натоварено.
- Почистване: Disconnect power before cleaning. Use only mild, non-abrasive cleaners.
- услуга: All maintenance and repairs should be performed by qualified service personnel.
- Запалим хладилен агент: This unit uses R290 natural refrigerant. Handle with care and ensure proper ventilation during service.
3. Разопаковане и инсталиране
3.1 Разопаковане
Внимателно отстранете всички опаковъчни материали, включително тиксо и защитно фолио. Проверете устройството за евентуални повреди по време на доставката. Съобщете незабавно за всякакви повреди на превозвача.
3.2 Поставяне
Position the refrigerator in a location with sufficient air circulation. Avoid direct sunlight or heat sources. Ensure the floor is level and strong enough to support the unit's weight. The unit's dimensions are 31.5"D x 72.25"W x 45.6"H.

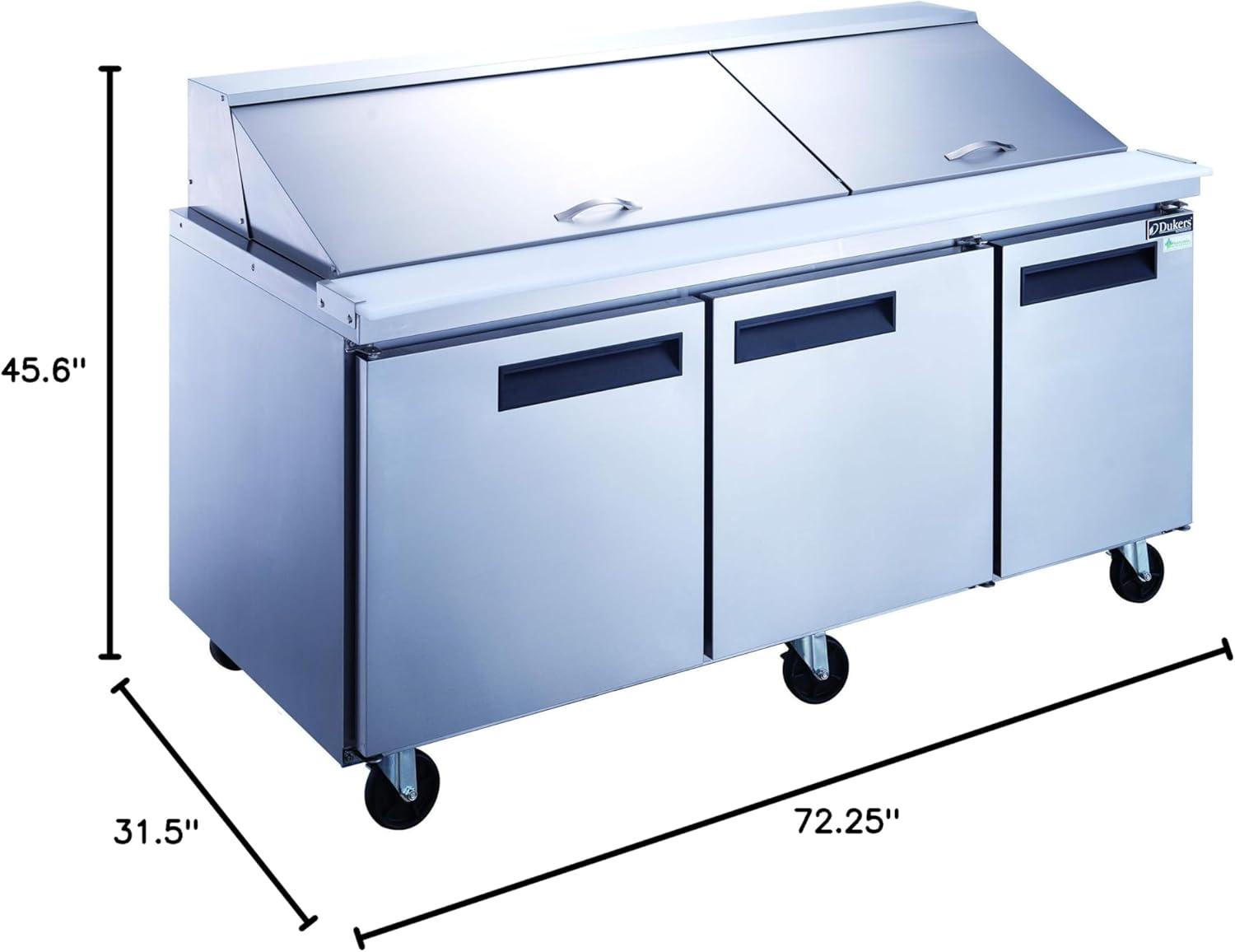

Изображение 1: Dimensions of the Dukers DSP72-30M-S3 Commercial Food Prep Table. This image illustrates the width (72.25 inches), depth (31.5 inches), and height (45.6 inches) of the unit, crucial for proper placement and space planning.
3.3 Инсталиране на колелца
The unit comes with 6 locking swivel casters for mobility. Attach the casters securely to the bottom of the unit. Ensure all casters are locked once the unit is in its final position to prevent unintended movement.
3.4 Електрическо свързване
Plug the unit into a dedicated 115V/60Hz, 3.4 Amp grounded electrical outlet. The unit is equipped with a 9 ft. power cord and a NEMA 5-15P plug. Do not overload the circuit.
4. Операция
4.1 Първоначално стартиране
After installation, allow the unit to stand for at least 2 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, the unit will begin cooling.
4.2 Контрол на температурата
The unit features digital temperature controls with an LED display for precise adjustment. The recommended operating temperature range is 33°F to 41°F. Refer to the digital controller's specific instructions for setting and adjusting the temperature.
4.3 Food Preparation and Storage
The mega top design accommodates 30 1/6 containers for various food items and toppings, facilitating efficient food preparation. The interior includes 3 adjustable and removable wire shelves for organized storage of larger items. The self-closing doors enhance convenience and help maintain consistent internal temperatures.

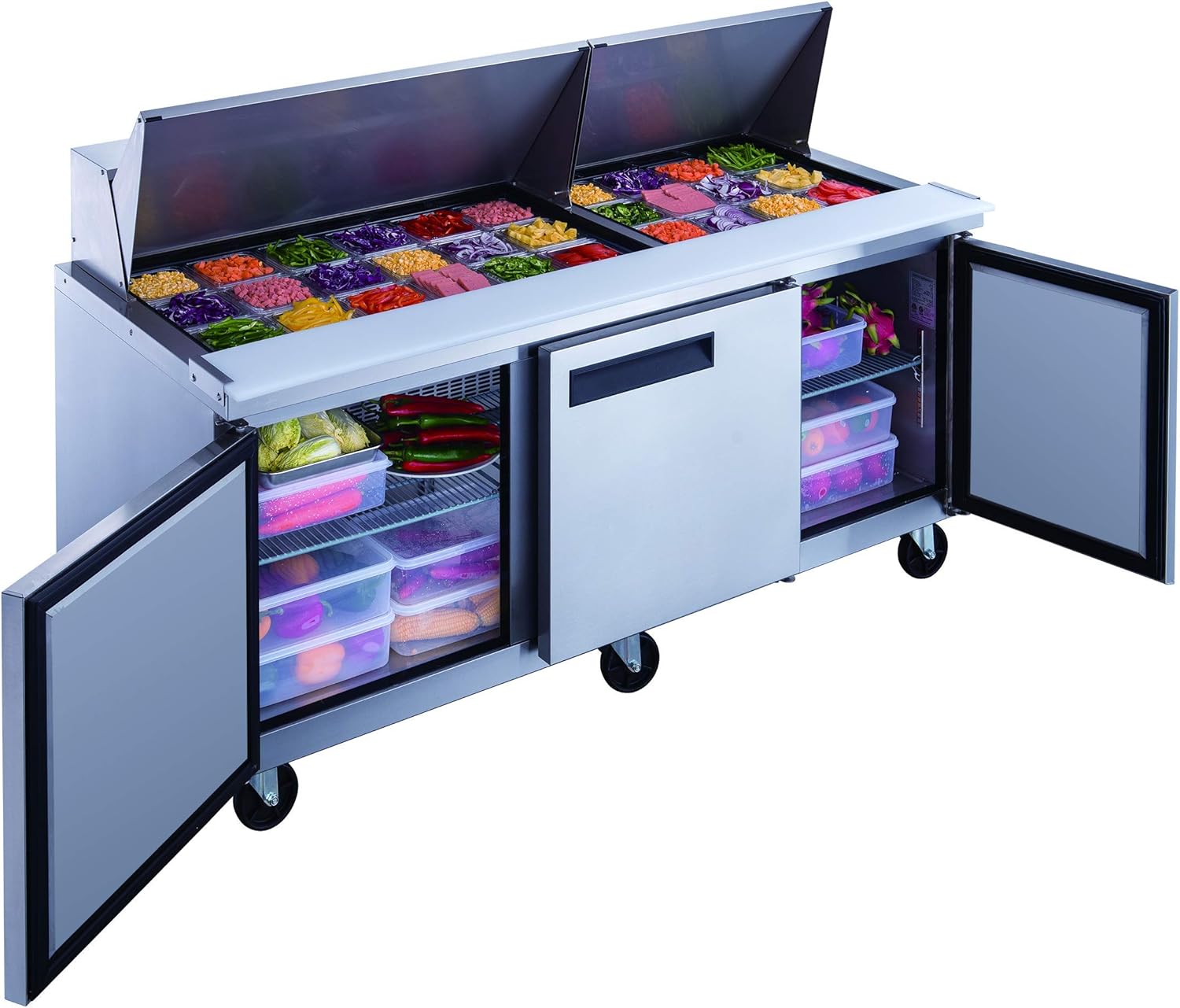

Изображение 2: Dukers DSP72-30M-S3 Commercial Food Prep Table with doors open. This image displays the interior storage with adjustable wire shelves and the mega top section filled with various food containers, illustrating its food preparation capabilities.
4.4 Автоматично размразяване
The unit is equipped with an automatic defrost system, which helps maintain lower energy costs and colder temperatures by preventing ice buildup on the evaporator coils. No manual defrosting is typically required.
4.5 Продуктът надview видео
Видео 1: Официално видео шоуasing various features of Dukers commercial refrigeration units, including ergonomic recess door handles, adjustable grid shelves, micro-control system, high-density foam insulation, arc angular design for easy cleaning, casters with stabilizing brakes, humanized uncovering design for dust protection, and removable door gaskets for easy cleaning. This video provides a visual overview of the product's design and functional aspects.
5. Поддръжка и почистване
Редовната поддръжка осигурява оптимална работа и дълготрайност на вашия хладилник.
- Външно почистване: Wipe down the stainless steel exterior regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that can scratch the surface.
- Почистване на интериора: Clean the interior surfaces, including shelves and the arc angular design corners, with a mild detergent and water. Rinse thoroughly and dry.
- Door Gasket Cleaning: The door gaskets are removable for easy cleaning. Clean them regularly to ensure a tight seal, which is crucial for energy efficiency.
- Почистване на кондензаторната серпентина: The heavy-duty 1/4 HP bottom-mounted compressor's condenser coils should be cleaned periodically to maintain efficiency. Consult a qualified technician for this procedure.
6. Отстраняване на проблеми
Преди да се свържете със сервиза, отновоview следните често срещани проблеми и решения:
| проблем | Възможна причина | Решение |
|---|---|---|
| Устройството не охлажда | Power supply issue, thermostat setting, dirty condenser coils, door not sealing properly. | Check power connection, adjust thermostat, clean condenser coils, inspect door gaskets. |
| Прекален шум | Unit not level, loose components, fan obstruction. | Ensure unit is level, check for loose parts, clear any fan obstructions. |
| Вода на пода | Clogged drain line, excessive humidity, door left open. | Clear drain line, ensure proper door closure, reduce ambient humidity if possible. |
Ако проблемите продължават след като сте опитали тези решения, свържете се с квалифициран сервизен персонал.
7. Спецификации
| Характеристика | детайл |
|---|---|
| Номер на модела | DSP72-30M-S3 |
| Размери на продукта (Д x Ш x В) | 31.5" x 72.25" x 45.6" |
| Капацитет | 17.5 кубични фута |
| Voltage | 115V/60Hz |
| Ampераж | 3.4 Amps |
| Уотtage | 380 вата |
| Хладилен агент | R290 Natural Refrigerant |
| Температурен диапазон | 33°F до 41°F (прибл.) |
| Брой врати | 3 |
| Рафтове | 3 adjustable and removable wire shelves |
| Колелца | 6 locking swivel casters (4”) |
| Компресор | Heavy-duty 1/4 HP bottom mounted |
| Система за размразяване | Автоматичен |
| Сертификати | NSF/ANSI 7 Standard, ETL Listed / ETL Sanitation |
| Тип щепсел | NEMA 5-15P |
8. Гаранция и поддръжка
8.1 Гаранция на производителя
Your Dukers DSP72-30M-S3 Commercial Food Prep Table Refrigerator comes with the following manufacturer's warranty:
- 3 година гаранция за части и работа
- 5 години гаранция за компресор
Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use and service.
8.2 Поддръжка на клиенти
For technical assistance, warranty service, or to order replacement parts, please contact Dukers customer support. Have your model number (DSP72-30M-S3) and serial number ready when you call.
