Ръководство за потребителя на сензор за положение на коляновия вал ERA 550101A

1. Въведение

This manual provides essential information for the proper installation, operation, and maintenance of your ERA Crankshaft Position Sensor, model 550101A. This sensor is designed for specific vehicle applications, including Volkswagen Polo (9N_, 6N2) and Lupo (6X1, 6E1) models. Please read this manual thoroughly before proceeding with installation or any related procedures.

2. Информация за безопасност

Always prioritize safety when working with automotive components. Failure to follow these safety guidelines may result in personal injury or damage to the vehicle.

• Уверете се, че двигателят на превозното средство е изключен и охладен, преди да започнете каквато и да е работа.
• Изключете акумулатора на автомобила, за да предотвратите случайно късо съединение.
• Носете подходящи лични предпазни средства (ЛПС), като предпазни очила и ръкавици.
• Вижте сервизното ръководство на вашия автомобил за подробни инструкции и спецификации за въртящия момент.
• Ако не сте сигурни в някоя стъпка, консултирайте се с квалифициран автомобилен техник.

3. Съдържание на пакета

След отваряне на опаковката, проверете дали всички компоненти са налични и не са повредени:

• 1 x ERA Crankshaft Position Sensor (Model 550101A)
• (No other accessories are typically included with this type of sensor)

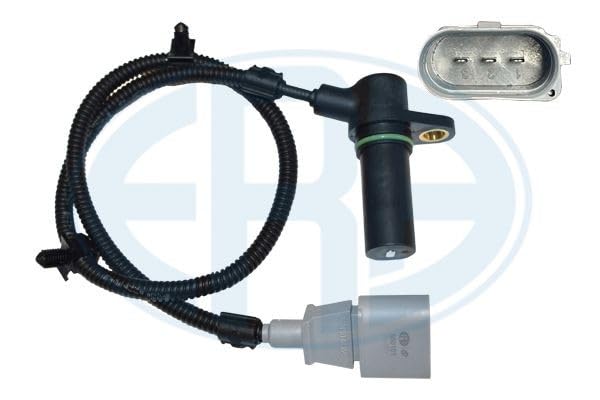

Image: The ERA Crankshaft Position Sensor 550101A, showing the main sensor body, attached electrical cable, and the corresponding electrical connector. The sensor body is black with a green O-ring, and the connector is grey with three pins.

4. Ръководство за инсталиране

The installation of a crankshaft position sensor requires mechanical aptitude. If you are not comfortable performing this procedure, seek professional assistance.

4.1 Необходими инструменти

• Комплект гаечен ключ
• Torque wrench (if specific torque values are available in vehicle manual)
• Flathead screwdriver (for prying clips, if necessary)
• Чисти парцали

4.2 Стъпки на инсталиране

1. Подгответе превозното средство: Паркирайте автомобила на равна повърхност, включете ръчната спирачка и се уверете, че двигателят е изключен и се е охладил. Разкачете отрицателния извод на акумулатора.
2. Намерете стария сензор: The crankshaft position sensor is typically located near the crankshaft pulley or flywheel, depending on the vehicle model. Consult your vehicle's service manual for the exact location.
3. Изключете електрическия конектор: Carefully disconnect the electrical connector from the old sensor. Press any release tabs or clips as needed.
4. Премахване на стария сензор: Use the appropriate socket wrench to remove the bolt(s) securing the old sensor. Gently pull the sensor out of its mounting bore.
5. Чиста зона за монтаж: Clean any debris, oil, or residue from the sensor's mounting bore and surrounding area.
6. Инсталиране на нов сензор: Insert the new ERA 550101A sensor into the mounting bore. Ensure the O-ring (if present) is properly seated. Secure the sensor with the retaining bolt(s). Tighten to the vehicle manufacturer's specified torque.
7. Свържете отново електрическия конектор: Firmly connect the electrical connector to the new sensor until it clicks into place.
8. Свържете отново батерията: Свържете отново отрицателния извод на акумулатора на автомобила.
9. Тестова операция: Start the engine and check for any warning lights or abnormal operation. It may be necessary to clear any stored diagnostic trouble codes (DTCs) using an OBD-II scanner.

5. Принципи на работа

The crankshaft position sensor (CKP sensor) is a vital component of your vehicle's engine management system. It monitors the rotational speed and position of the crankshaft, sending this information to the Engine Control Unit (ECU).

The ECU uses this data to:

• Determine engine RPM.
• Control ignition timing.
• Control fuel injection timing.
• Detect misfires.

A properly functioning CKP sensor ensures optimal engine performance, fuel efficiency, and emissions control.

6. Поддръжка

Crankshaft position sensors are generally maintenance-free components. However, regular vehicle maintenance can help ensure its longevity:

• Редовни инспекции: During routine vehicle servicing, visually inspect the sensor and its wiring for any signs of damage, fraying, or corrosion.
• Пази чистота: Ensure the area around the sensor is free from excessive oil, dirt, or debris, which could interfere with its operation.
• Избягвайте физически щети: Be careful not to strike or damage the sensor during other engine bay work.

7. Отстраняване на проблеми

If you experience issues after installing the sensor or suspect a sensor malfunction, consider the following common problems and solutions:

Забележка: Always consult a qualified mechanic or refer to your vehicle's specific diagnostic procedures for accurate troubleshooting.

8. Спецификации

Key specifications for the ERA Crankshaft Position Sensor 550101A:

9. Гаранция и поддръжка

For information regarding warranty coverage or technical support for your ERA product, please refer to the manufacturer's official website or contact your point of purchase. Specific warranty details may vary by region and retailer.

ERA Official Webсайт: www.era.it
