Ръководство за употреба на тунелна палатка Outsunny 4-6 души

Продуктът е свършилview

The Outsunny 4-6 Man Tunnel Tent is designed for comfortable outdoor living, featuring a spacious layout with two separate bedrooms, a central living area, and a vestibule. It offers protection against the elements with a 2000mm waterproof rating and UV50+ protection. This portable tent is suitable for various outdoor activities such as campпоходи, туризъм и фестивали.

Image: The Outsunny 4-6 Man Tunnel Tent, showcasing its full tunnel design with multiple sections and a grey and red color scheme.

Ключови характеристики:

• Просторен дизайн: Two bedrooms, a living room, and a canopy, suitable for 4-6 people.
• Защита от атмосферни влияния: 2000mm waterproof rating and UV50+ resistant fabric.
• Ventilation & Access: Two large side doors and mesh windows for airflow.
• Преносимост: Includes a double-handle carry bag for easy transport.
• Размери: 193H x 590L x 245W cm when set up.

Съдържание на пакета

Преди да започнете сглобяването, моля, уверете се, че всички компоненти, изброени по-долу, са налични в опаковката:

• Tent Fabric (Outer Flysheet and Inner Tents)
• Tent Poles (various lengths for main structure and vestibule)
• 32 x Наземни колове
• 14 x въжета за закрепване
• Чанта
• Hook (for lantern)

Image: A visual representation of the tent's portability, showing the carry bag, 32 ground stakes, and 14 guy ropes included with the tent.

Инструкции за настройка

Careful assembly is crucial for the tent's stability and performance. It is recommended that two or more people set up this tent.

1. Изберете сайт: Select a flat, clear area free of sharp objects. Lay out the tent's outer flysheet.
2. Сглобяване на стълбове: Connect the tent pole sections. Identify the different lengths for the main arches and vestibule.
3. Вмъкване на полюси: Slide the assembled poles through the corresponding sleeves on the outer flysheet. The tent has an arched shape, so ensure poles are correctly aligned with the curves.
4. Вдигане на палатка: With assistance, lift the tent structure and insert the ends of the poles into the grommets or pin-and-ring systems at the base of the tent.
5. Сигурна палатка: Stake down the four corners of the tent firmly into the ground.
6. Attach Guy Ropes: Extend and stake out all guy ropes. Adjust tension to ensure the tent fabric is taut and stable, especially in windy conditions. This helps prevent sagging.
7. Install Inner Tents: Once the outer flysheet is pitched, attach the inner bedroom tents to the designated clips or toggles inside. Ensure the welded floors are flat.
8. Vestibule Setup: If applicable, use the shorter poles to prop up the vestibule door to create a sunshade.

Image: A diagram illustrating the overall dimensions of the tent (5.9m L x 2.45m W x 1.93m H) and internal layout, providing a visual guide for setup and space planning.

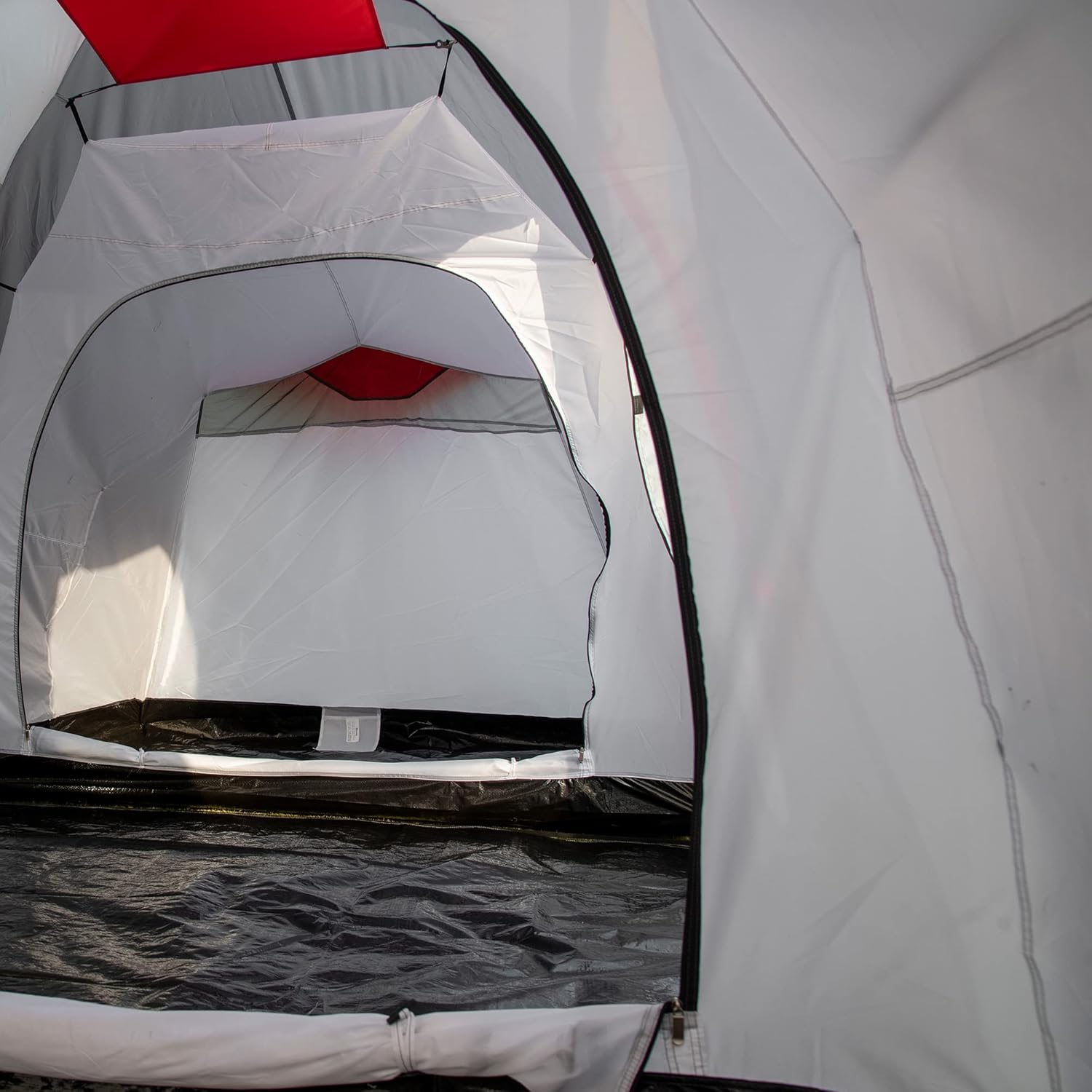

Изображение: Интериор view of the tent, highlighting the separate inner bedroom tents and the black welded floor material designed to keep the interior dry.

Инструкция за работа

To maximize your comfort and the tent's lifespan:

• Вентилация: Utilize the mesh windows to ensure proper airflow and reduce condensation inside the tent. Keep them open when weather permits.
• Използване на врата: The two large side doors provide easy access. They can be rolled up and secured, or propped open with additional poles (not included) to create a sunshade.
• Room Separation: The internal doors between the living area and bedrooms can be zipped closed for privacy or left open for a more communal space.
• Осветление: A hook is provided inside the tent for hanging a lantern or light source.

Image: A close-up of the tent's side, illustrating the two main doors. Text overlays indicate that two doors are for bedroom access and two can be propped open as sunshades.

Изображение: Подробно views of the tent's interior, showing the welded floors for dryness, mesh windows for ventilation, and a lantern hook for internal lighting.

Поддръжка

Правилната поддръжка ще удължи живота на вашата палатка:

• Почистване: Clean the tent with a soft sponge and mild soap (non-detergent) and lukewarm water. Do not use harsh chemicals or abrasive cleaners.
• Сушене: Винаги се уверявайте, че палатката е напълно суха, преди да я опаковате. Реклама за опакованеamp tent can lead to mildew and fabric degradation. Air dry in a shaded, well-ventilated area.
• Съхранение: Съхранявайте палатката в чантата ѝ за носене на хладно и сухо място, далеч от пряка слънчева светлина и екстремни температури.
• Грижа за стълбовете: Inspect poles for damage or bending before and after each use. Clean any dirt from pole sections.
• Инспекция на тъкани: Periodically check the fabric for tears, punctures, or signs of wear. Repair small damages promptly to prevent them from worsening.

Отстраняване на неизправности

Спецификации

Гаранция и поддръжка

For warranty information, product support, or to inquire about replacement parts, please contact Outsunny customer service directly. Refer to your purchase documentation or the official Outsunny webсайт за данни за контакт.

Можете да посетите официалния магазин на Outsunny за повече информация: Outsunny Store on Amazon UK
