The Orbit 57034 3/4" Brass Automatic Converter Sprinkler Valve is designed to transform existing manual brass irrigation valves into fully automatic valves. This unit is compatible with standard 3/4 inch brass valve bodies from various manufacturers, including Champion, Superior, Rain Bird, and LawnLife, provided they have 1-1/4 inch-16 UN threads. It features a 24 VAC solenoid for compatibility with major irrigation controller brands and includes an adjustable flow control for precise water pressure management.
Constructed from durable brass, this converter valve offers enhanced longevity compared to plastic alternatives. It incorporates a reinforced valve diaphragm with a copper washer seal to prevent leaks and a stainless steel spring for reliable operation. The valve is designed to operate within a pressure range of 25 to 150 PSI.
Image: The Orbit 57034 3/4 inch Brass Automatic Converter Sprinkler Valve, showing its brass construction and solenoid.
Настройка и инсталиране
Follow these steps for proper installation of your Orbit 57034 Automatic Converter Sprinkler Valve:
- Изключете водоснабдяването: Before beginning any installation, ensure the main water supply to your irrigation system is completely shut off to prevent water flow and potential leaks.
- Remove Existing Valve Stem: Carefully remove the existing manual valve stem from the brass valve body. This typically involves unscrewing it.
- Install Automatic Brass Converter: Thread the new Orbit automatic brass converter into the existing brass valve body. Ensure it is securely tightened to prevent leaks. This unit is a direct screw-in replacement for worn converter valves.
- Свързване на кабели: Connect the two wires from the solenoid to your sprinkler controller's wiring harness. This valve is compatible with all major 24 VAC irrigation controllers, including Orbit B-hyve, Hydro-Rain, Rain Bird, and Hunter. The solenoid features nickel-plated copper wire for reliable operation.
- Възстановяване на водоснабдяването: Once the converter is installed and wired, slowly turn the main water supply back on. Check for any leaks around the valve body.
Image: Visual guide showing the process of installing the automatic brass converter into an existing valve body.
Инструкция за работа
The Orbit 57034 valve offers both automatic and manual operation capabilities:
- Автоматична работа: Once connected to a compatible 24 VAC irrigation controller, the valve will open and close according to the programmed schedule. Ensure your controller is properly set up for automatic watering cycles.
- Manual Operation (Bleed Screw): The valve features a manual bleed screw. This allows for quick testing of the valve operation or running a zone independently of the automatic schedule without an electrical connection. To manually open the valve, turn the bleed screw counter-clockwise. To close it, turn it clockwise.
- Регулиране на контрола на потока: The integrated flow control allows you to fine-tune the water pressure to your sprinkler system. Adjusting the flow control can reduce sprinkler fogging and over-spray, optimizing water distribution. Turn the flow control knob to increase or decrease the water flow rate.

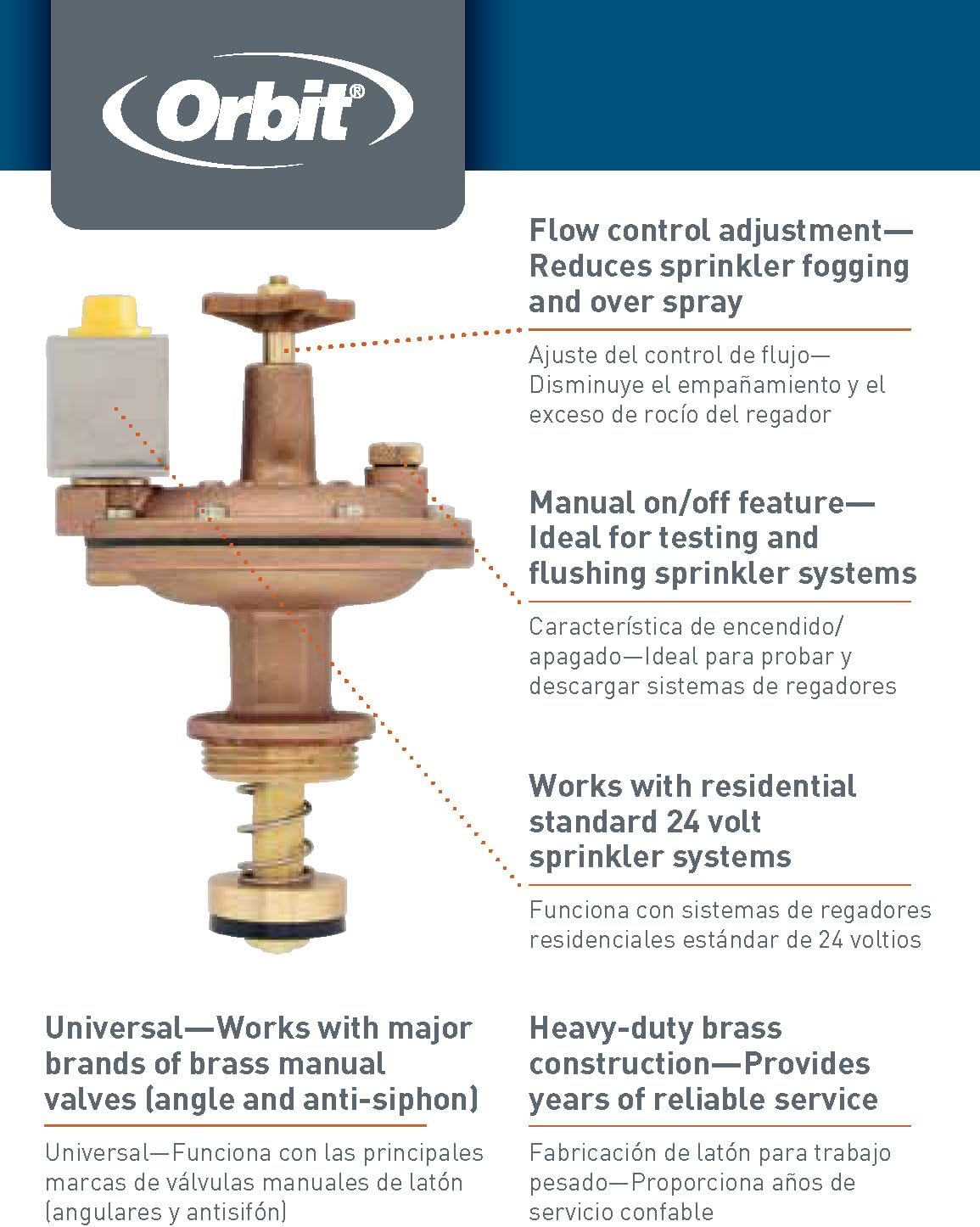

Image: Diagram highlighting the flow control adjustment and manual on/off feature on the Orbit 57034 valve.
Поддръжка
Regular maintenance helps ensure the longevity and optimal performance of your Orbit 57034 valve:
- Периодична проверка: Periodically inspect the valve for any signs of wear, damage, or leaks. Pay attention to the connections and the area around the solenoid.
- Почистване: If debris or sediment accumulates, it may affect valve operation. Turn off the water supply and carefully disassemble the top portion of the converter to clean any internal components. Reassemble securely.
- Diaphragm and Spring Check: The valve features a reinforced diaphragm with a copper washer seal and a stainless steel spring. While designed for durability, these components can wear over time. If you notice consistent leaks or improper valve operation, these internal parts may require inspection or replacement. The unit is designed for easy replacement of worn converter valves.
- зазимяване: In regions subject to freezing temperatures, it is crucial to properly winterize your irrigation system, including the converter valve, to prevent freeze damage. Consult your irrigation system's overall winterization guide.
Отстраняване на неизправности
If you encounter issues with your Orbit 57034 valve, refer to the following common problems and solutions:
| проблем | Възможна причина | Решение |
|---|---|---|
| Valve does not open automatically. |
|
|
| Valve does not close completely or leaks. |
|
|
| Low water pressure or flow. |
|
|
Спецификации
| Характеристика | детайл |
|---|---|
| Номер на модела | 57034 |
| Марка | Орбита |
| Материал | Месинг |
| Тип клапан | Преобразуващ клапан |
| Inlet/Outlet Connection Size | 0.75 инча |
| Тип връзка | С резба |
| Размер на резбата | 0.75 inches (1-1/4 inch-16 UN threads for valve body compatibility) |
| Максимално работно налягане | 150 PSI (Note: Product specifications also list 125 Pound per Square Foot) |
| Електрическа съвместимост | 24 VAC (compatible with major irrigation controllers) |
| Размери на артикула (Д x Ш x В) | 7 x 4 x 4 инча |
| Тегло на артикула | 2.3 паунда |
| UPC | 046878570344 |
Гаранционна информация
The Orbit 57034 3/4" Brass Automatic Converter Sprinkler Valve comes with a 6 години гаранция. For specific terms and conditions, or to make a warranty claim, please refer to the official Orbit webсайт или се свържете с поддръжката на клиенти.
Image: Product packaging indicating a 6-year warranty.
