Въведение
This manual provides essential information for the safe and effective use of your HQRP AC Adapter. This power supply is designed to provide reliable power to various musical instrument multi-effects pedals, including specific DigiTech, Alesis, and DOD models. Please read this manual thoroughly before use.
Image: The HQRP AC Adapter, displaying its label with input/output specifications and certifications.
Информация за безопасност
За да осигурите безопасна работа и да предотвратите повреди, спазвайте следните указания за безопасност:
- Входен обемtage: This adapter is designed for 120V AC input. Do not use with incompatible voltagд източници.
- Изходни спецификации: Provides AC (Alternating Current) 9V, 1.3A output. Ensure your device requires these specifications.
- Характеристики на защитата: The adapter includes automatic overload cut-off, automatic thermal cut-off, short circuit protection, and over voltage protection to safeguard your devices.
- Само за вътрешна употреба: This adapter is intended for indoor use in dry locations. Avoid exposure to moisture or extreme temperatures.
- Грижа за кабела: Do not bend, twist, or pull the power cord excessively. Avoid placing heavy objects on the cord.
- Прекъсване на връзката: Always grasp the plug, not the cord, when disconnecting from the power outlet.
- Предложение 65 Предупреждение: Този продукт може да съдържа химикали, известни на щата Калифорния, че причиняват рак и вродени дефекти или други репродуктивни увреждания.
Image: An illustration of the internal components highlighting the over voltage, over current, and short circuit protection features.
Настройка
- Проверете съвместимостта: Before connecting, ensure your device requires a 9V AC power supply with a 1.3A current rating and a barrel connector. Refer to your device's manual for power requirements.
- Свържете се с устройството: Insert the barrel connector of the HQRP AC Adapter firmly into the power input jack of your musical instrument pedal or compatible device.
- Свързване към електрически контакт: Plug the AC adapter into a standard 120V AC wall outlet. Ensure the outlet is easily accessible.
- Включено устройство: Once connected, power on your device according to its instructions.

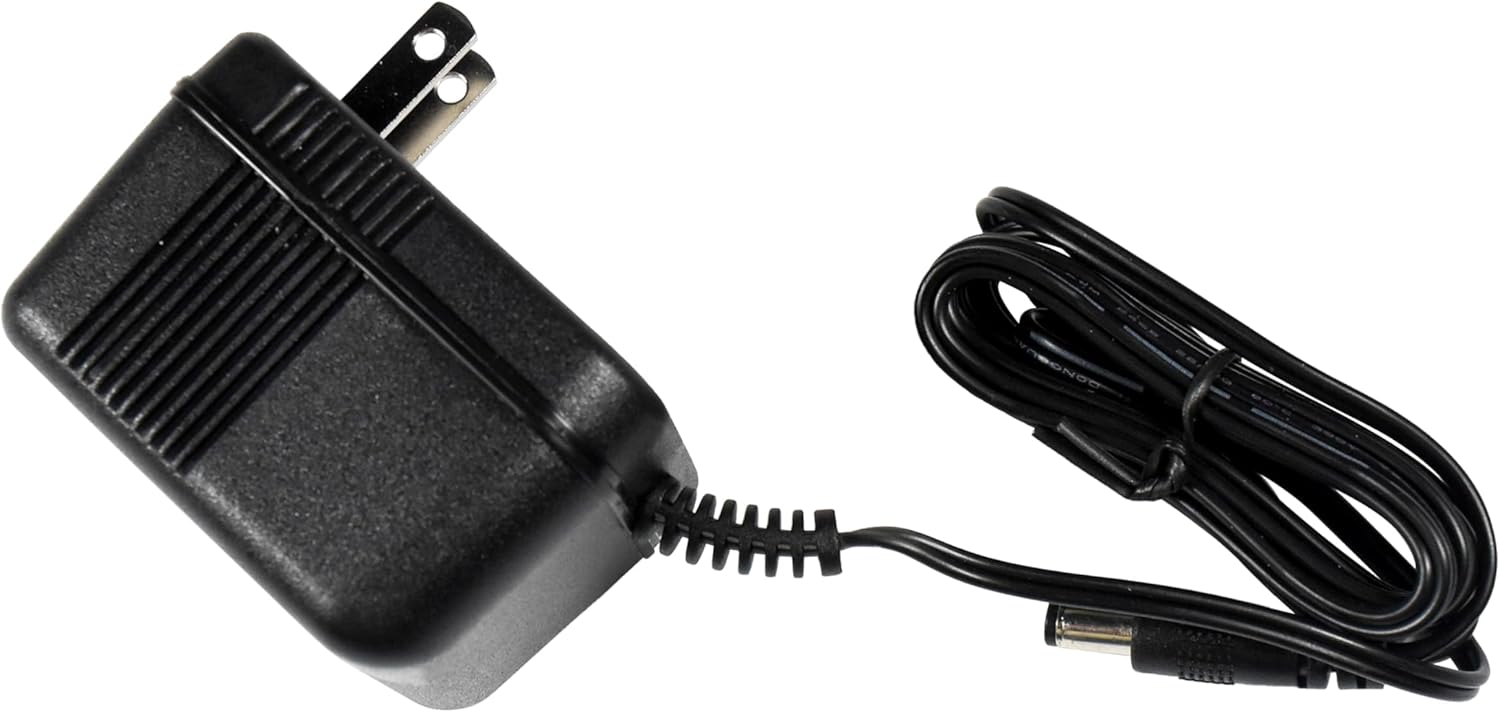

Image: The HQRP AC Adapter with its integrated power cord and barrel connector, ready for connection.
Оперативен
The HQRP AC Adapter operates automatically once connected to a power source and a compatible device. It provides continuous power for your equipment.
- Уверете се, че адаптерът е поставен на добре проветриво място, за да предотвратите прегряване.
- Избягвайте да покривате адаптера по време на работа.
- If the adapter feels excessively hot to the touch, disconnect it immediately and allow it to cool.
Поддръжка
The HQRP AC Adapter requires minimal maintenance. Follow these guidelines to prolong its lifespan:
- Почистване: Disconnect the adapter from the power outlet and device before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Съхранение: When not in use, store the adapter in a cool, dry place, away from direct sunlight and moisture. Avoid tightly coiling the cord.
- Инспекция: Periodically inspect the power cord and connector for any signs of damage, such as fraying, cuts, or bent pins. If damage is observed, discontinue use and replace the adapter.
Отстраняване на неизправности
| проблем | Възможна причина | Решение |
|---|---|---|
| Устройството не се включва. |
|
|
| Адаптерът се затопля по време на употреба. |
|
|
| Humming or noise from the adapter. |
|
|
Спецификации
- Номер на модела: 887774706101316
- вход: 120V AC 60Hz
- Изход: 9V AC, 1.3A (1300mA), 11.7 Watts
- Дължина на кабела: Приблизително 76 инча (1.93 метра)
- Тип конектор: Съединител за цев
- Размери на продукта: 5.91 x 3.94 x 1.97 инча (приблизително)
- Тегло на артикула: 13.7 унции (приблизително)
- Функции за безопасност: Automatic Overload Cut-off, Automatic Thermal Cut-off, Short Circuit Protection, Over Voltage Protection, Low Interference & Noise
- производител: HQRP
- Дата на първа наличност: 10 юни 2013 г
Съвместимост
This HQRP AC Adapter is compatible with a wide range of musical instrument pedals and devices requiring 9V AC power. Confirmed compatible models include, but are not limited to:
- DigiTech: RP3, RP200, RP200A, RP250, RP255, RP300, RP300A, RP350, RP355, RPx400, S100, S400, RP100, RP100A, RP150, RP155, RP500, RP1000, BP200, BP355, VL4, VL3D, VL2, Live 3, Live 5, Brian May-XAS-BM, EX-7 Expression Factory, EXH, XP100, XP200, XP300, XP400, Talker, EX7, GNX1, HarmonyMan, JamMan, JamMan Delay, JamMan Stereo, Jimi Hendrix Experience-JHE, Vx400, Whammy 4 IV, Vocal 300, TimeBender.
- Alesis: P3, P3X110, D4, DM5, DM10, DEQ224, DEQ230, Faze, MEQ230, Nano-Compressor, Nano-Bass, Nano-Piano, Performance-Pad, Vocal Zapper, iDM02, iED04, Metavox, Trigger IO, MidiVerb 4, ModFX, NanoVerb, NanoSynth, SR16, Phlngr, PicoVerb, Smashup, 3630 Compressor, AI2, AirFX, AirSynth, Akira, Bitrman, MicroVerb 3, MicroVerb 4.
- DOD: PS750, Acoustic One Signal Processor Pream, FX7, FX-7 Guitar FX Processor Preamp Multi-Effects, VOFX, G10, D3, D6, D12, VGS50, Bass30, GS30, TEC8G, SR400D.
Always verify the power requirements of your specific device before connecting.
Image: Visual representation of the HQRP AC Adapter's compatibility with several popular musical instrument devices.
Гаранция и поддръжка
For warranty information and technical support, please refer to the official HQRP website or contact their customer service directly. Details regarding specific warranty periods and support procedures are typically provided with your purchase or on the manufacturer's official channels.
За допълнителна помощ можете да посетите HQRP Store on Amazon.
