Eureka Forbes Easy Clean Plus 800-Watt Vacuum Cleaner User Manual

Въведение

This manual provides essential information for the safe and efficient operation of your Eureka Forbes Easy Clean Plus 800-Watt Vacuum Cleaner. Please read these instructions carefully before using the appliance and retain them for future reference. This compact and lightweight vacuum cleaner is designed for indoor use, offering both suction and blower functions for versatile cleaning.

Информация за безопасност

• Do not operate the vacuum cleaner continuously for more than 10-15 minutes to prevent overheating and ensure product longevity.
• The appliance is equipped with a thermal cut-off mechanism that automatically switches off the device if it overheats. Allow the unit to cool down before resuming operation.
• Уверете се, че захранването отговаря на voltage specified on the appliance (230 V AC, 50 Hz).
• Keep hands, feet, loose clothing, and hair away from moving parts and openings during operation.
• Не почиствайте с прахосмукачка течности, гореща пепел, горящи цигари или остри предмети.
• Винаги изключвайте уреда от контакта, преди да го почиствате или извършвате поддръжка.
• Не използвайте уреда, ако захранващият кабел или щепселът са повредени.

Продуктови компоненти

Your Eureka Forbes Easy Clean Plus vacuum cleaner comes with the following components:

• Прахосмукачка
• Гъвкава тръба за маркуч
• 2 удължителни тръби
• Carpet/Floor Brush
• Накрайник за цепнатини
• Четка за тапицерия
• Многофункционална четка
• Blower Adaptor
• Презрамка
• Ръководство за потребителя
• Гаранционна карта
• Demo CD (for illustrative purposes)

Фигура 1: All components included with the Eureka Forbes Easy Clean Plus 800-Watt Vacuum Cleaner.

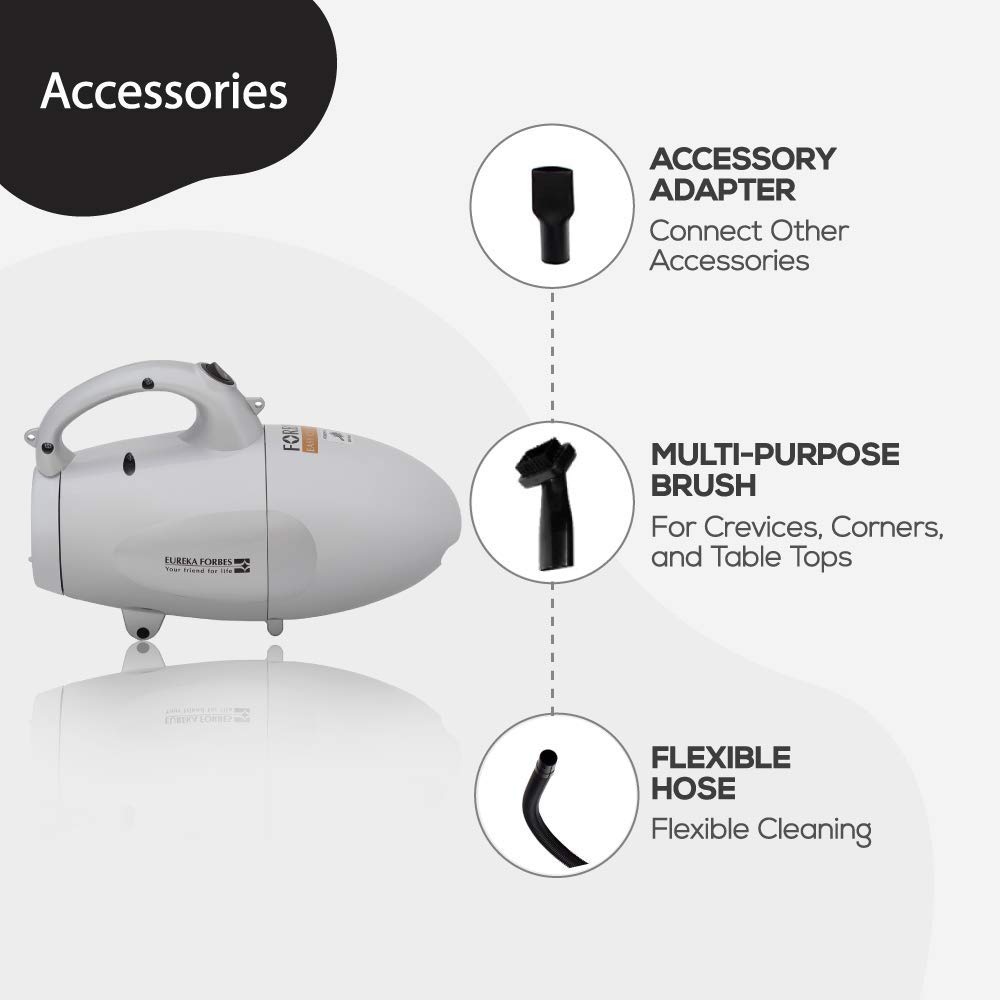

Фигура 2: Подробно view of the accessory adapter, multi-purpose brush for crevices and table tops, and flexible hose for cleaning.

Фигура 3: Подробно view of the blower adapter for using the blowing function and the shoulder strap for easy handling.

Фигура 4: Подробно view of the floor and carpet brush for various floor surfaces, and the upholstery brush for sofas, mattresses, pillows, and curtains.

Настройка

1. Разопаковане: Внимателно извадете всички компоненти от опаковката.
2. Приставка за аксесоари:
   • For suction, attach the flexible hose to the suction opening at the front of the main unit.
   • For blowing, attach the flexible hose to the blower opening at the rear of the main unit.
   • Connect the desired cleaning accessory (e.g., carpet/floor brush, crevice nozzle, upholstery brush, multi-purpose brush) to the end of the flexible hose or extension tubes.
   • Use the extension tubes to reach higher areas or for floor cleaning with the carpet/floor brush.
3. Презрамка за рамо: Attach the shoulder strap to the designated hoops on the handle of the vacuum cleaner for convenient carrying during use.
4. Захранване: Ensure the appliance is switched off before plugging the 18-foot power cord into a suitable 230V AC, 50Hz power outlet.

Инструкция за работа

Обща операция

1. After proper setup, switch on the appliance using the on/off switch, typically located for thumb access.
2. Move the cleaning attachment over the surface to be cleaned.
3. Observe the 10-15 minute continuous usage limit to prevent overheating. Allow the unit to cool down if it switches off automatically.
4. След употреба изключете уреда и го извадете от контакта.

Функция за засмукване

The suction function is ideal for collecting dust and debris from various surfaces. Ensure the flexible hose is connected to the front suction port. The 800W motor provides a suction pressure of 1600 mm of water column, capable of picking up small particles.

Функция на вентилатора

To use the blower function, attach the flexible hose to the rear blower port. This function is useful for dislodging dust from hard-to-reach areas, blowing leaves, or drying surfaces. The maximum airflow is 14 litres per second.

Поддръжка

• Dust Bowl Emptying: This vacuum cleaner is bagless and collects dust in its permanent dust bowl. Empty the dust bowl regularly to maintain optimal suction performance.
• Почистване на филтъра: The appliance uses a synthetic/cloth filter. Clean the filter periodically according to the instructions in the full user manual to ensure efficient operation and prevent clogging.
• Външно почистване: Избършете външната част на прахосмукачката с мека,amp плат. Не използвайте абразивни почистващи препарати или разтворители.
• Съхранение: Store the vacuum cleaner in a cool, dry place when not in use. Its compact size (280 mm x 140 mm x 180 mm) and lightweight design (1.8 kg) make storage easy.

Отстраняване на неизправности

Ако срещнете проблеми с прахосмукачката си, вижте следните често срещани решения:

• Уредът спира по време на употреба: This is likely due to the thermal cut-off mechanism activating. Unplug the unit and allow it to cool down for at least 30 minutes before restarting. Ensure the dust bowl is not full and the filter is clean.
• Намалена всмукателна мощност: Check if the dust bowl is full and needs emptying. Inspect the filter for clogs and clean it if necessary. Ensure all hose and accessory connections are secure and free from blockages.
• Необичаен шум: Turn off and unplug the vacuum cleaner. Check for any foreign objects lodged in the hose, nozzles, or main unit.
• Attachments coming loose: Ensure attachments are firmly twisted or pushed into place.

За допълнителна помощ, моля, свържете се с отдела за обслужване на клиенти.

Спецификации

Гаранция и поддръжка

Your Eureka Forbes Easy Clean Plus 800-Watt Vacuum Cleaner comes with a 1 години гаранция from the date of purchase. This warranty covers defects arising from faulty designs, workmanship, and materials.

For warranty claims, technical support, or any product-related inquiries, please refer to the Warranty Card included in your package or contact Eureka Forbes customer service.

Контакт за поддръжка на клиенти: 18602661177

This product does not require installation by a technician. For any assistance, please use the provided contact number.
