MELLCOM 12x20ft Polycarbonate Double Roof Hardtop Gazebo Instruction Manual

1. Продуктът свършиview

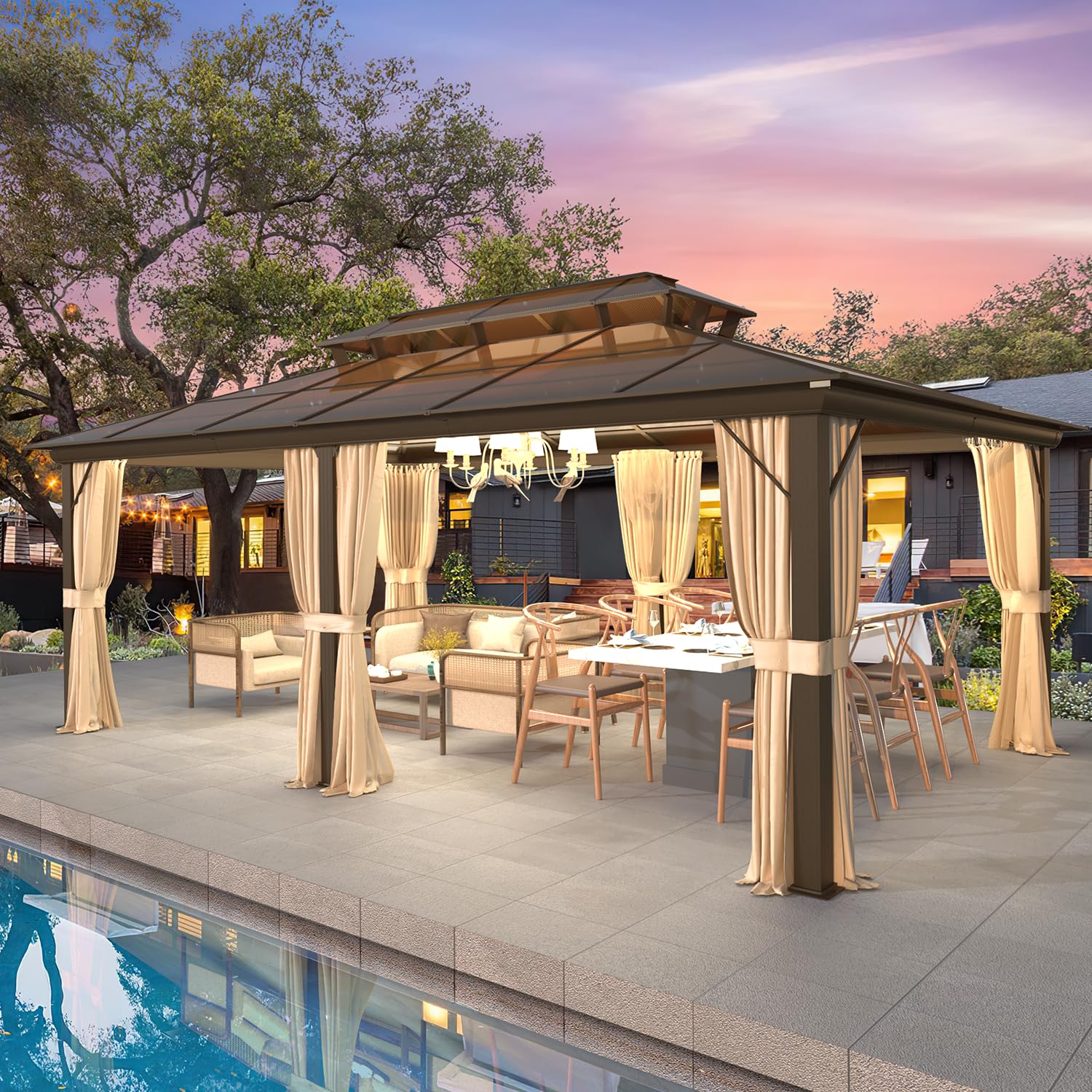

The MELLCOM 12x20ft Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space. It features a robust aluminum frame and a polycarbonate double roof, offering protection from various weather conditions. This gazebo includes integrated netting and curtains for enhanced comfort and privacy.

Ключови характеристики:

• Hardtop Polycarbonate Double Roof: Features three-layer protection to reduce heat, block 99% of harmful UV rays, and prevent water leakage. The double-top design with netting allows for ventilation and insect protection. It is constructed to withstand heavy snow and wind, with an overhang roof design to prevent rainwater accumulation.
• Rustproof Aluminum Frame: The strong powder-coated aluminum frame is weather-resistant, designed to prevent fading, rust, and corrosion. Pre-drilled holes for ground stakes ensure stability on various surfaces.
• Netting & Curtains: A double-track system allows for easy sliding of both double-layered sidewalls. Two side zippered privacy curtains and mosquito netting offer protection from insects, sun, and rain while maintaining airflow and visibility.
• Гъвкаво приложение: Equipped with hooks on the top roof for hanging lights and fans, enhancing the usability of the gazebo for various outdoor events such as family gatherings, BBQs, and parties.

Image 1: Detailed dimensions of the MELLCOM 12x20ft Hardtop Gazebo, illustrating its overall size and height for planning your outdoor space.

Изображение 2: Крупен план view of the polycarbonate roof panel, highlighting its lightweight, waterproof, anti-aging, and UV-resistant properties, along with its light transmission capabilities.

2. Инструкции за настройка

2.1 Мерки за безопасност

• Always assemble this gazebo on a flat, stable surface.
• Secure the gazebo to the ground using the provided stakes to prevent it from tipping over in windy conditions.
• Exercise caution during assembly and disassembly, as the gazebo's size and weight can pose potential hazards.
• Винаги следвайте инструкциите на производителя за правилна употреба и поддръжка.

2.2 Сглобяването приключиview

The MELLCOM 12x20ft Hardtop Gazebo comes in 6 boxes. Assembly is estimated to take approximately 5 hours with 4-6 people. It is highly recommended to have multiple individuals assist with the assembly due to the size and weight of the components.

1. Разопаковайте и идентифицирайте частите: Carefully unpack all components and verify against the parts list provided in the detailed manual. Organize parts by type for easier access.
2. Сглобяване на рамката: Begin by assembling the main aluminum frame structure, ensuring all connections are secure but not fully tightened until the entire frame is upright.
3. Монтиране на покривни панели: Attach the polycarbonate double roof panels according to the instructions, ensuring proper alignment for water resistance and UV protection.
4. Прикрепете мрежа и завеси: Install the double-track system and hang the mosquito netting and privacy curtains.
5. Закрепване към земята: Once fully assembled, use the provided ground stakes to firmly anchor the gazebo to your chosen surface.

Image 3: Illustration of the gazebo's structural details, including the triangular design for stability, the aluminum frame for durability, and the rust-proof columns.

3. Инструкции за работа

3.1 Roof Functionality

The polycarbonate double roof provides year-round protection. Its design allows for natural light while offering significant UV protection and heat reduction. The double-tier structure promotes airflow, preventing heat buildup and ensuring a comfortable environment.

Image 4: Close-up of the double roof design, illustrating how it allows for ventilation and reflects harmful UV rays.

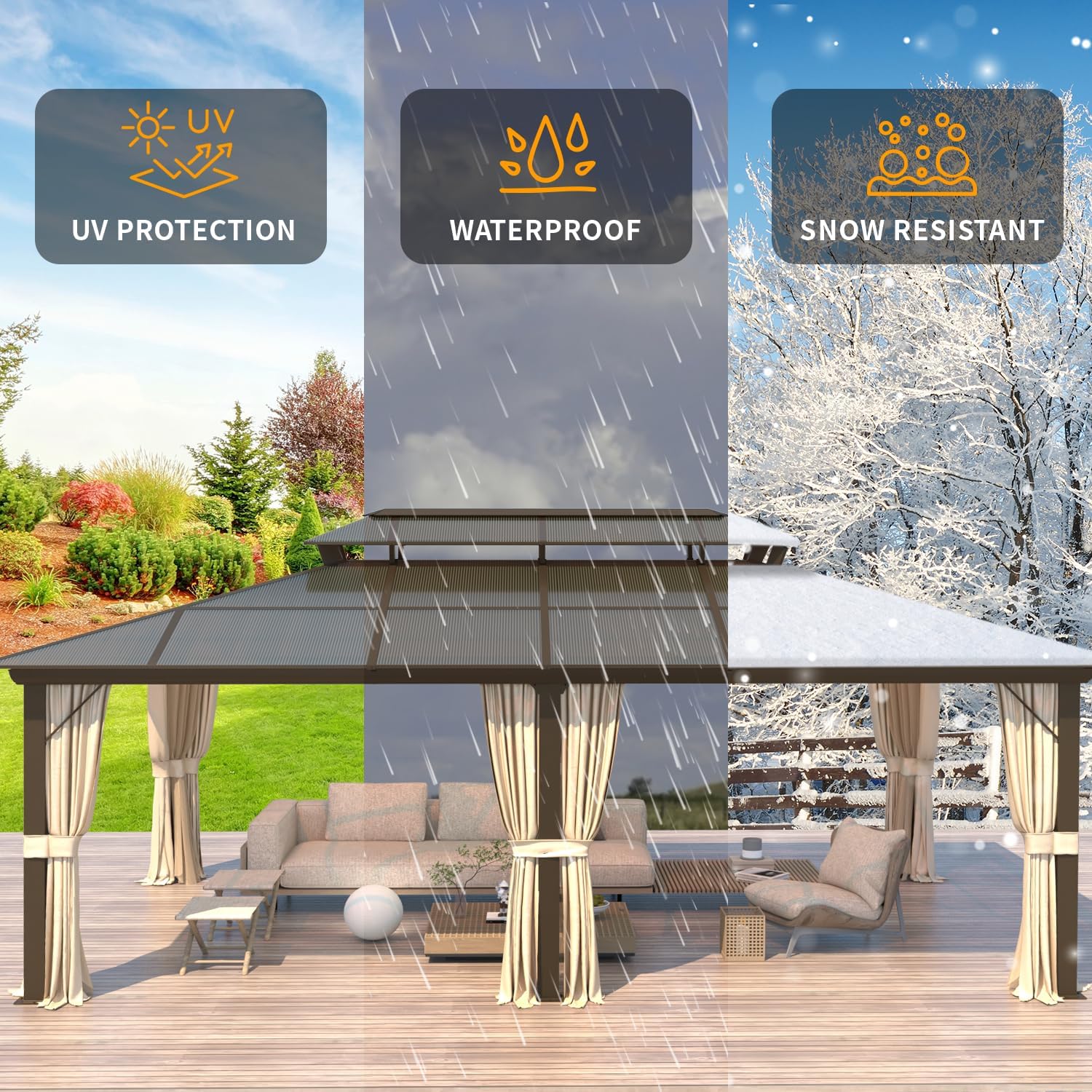

Image 5: Visual representation of the gazebo's UV protection, waterproof capabilities, and snow resistance in various weather conditions.

3.2 Netting and Curtains

Utilize the double-track system to easily open or close the mosquito netting and privacy curtains. The mosquito netting provides protection from insects while allowing airflow. The privacy curtains can be closed for seclusion or protection from light rain and wind.

Image 6: Depiction of the inner polyester nettings for insect protection and full airflow, alongside the outer privacy curtains for blocking wind, dust, and retaining warmth.

3.3 Accessory Hooks

The gazebo is equipped with integrated hooks on the top roof structure. These hooks are designed to support lightweight accessories such as outdoor lights or small fans, enhancing the ambiance and comfort of your gazebo.

Image 7: Close-up of the roof hooks, indicating their use for hanging lights and fans to customize your gazebo experience.

4. Поддръжка

4.1 Почистване

• рамка: Clean the aluminum frame with a mild soap solution and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• Покривни панели: Gently clean polycarbonate panels with a soft cloth, mild soap, and water. Do not use brushes or abrasive materials that could scratch the surface.
• Мрежи и завеси: These can typically be spot cleaned with mild soap and water. For deeper cleaning, refer to the fabric care instructions in the full product manual. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.

4.2 Сезонни грижи

• зима: While the roof is designed to withstand heavy snow, it is advisable to regularly clear excessive snow accumulation to prolong the lifespan of the structure.
• Ветровито време: Always ensure the gazebo is securely anchored with ground stakes. In extremely high winds, consider removing curtains and netting to reduce wind resistance.

5. Отстраняване на проблеми

5.1 Често срещани проблеми и решения

• Damaged Parts Upon Arrival: If any parts are damaged during shipping, do not proceed with assembly. Contact MELLCOM customer support immediately with your purchase details and images of the damaged parts for assistance.
• Теч на вода от покрива: Ensure all roof panels are correctly installed and sealed according to the assembly instructions. Check for any gaps or misalignments. If issues persist, contact support.
• Нестабилност на беседката: Verify that the gazebo is assembled on a level surface and that all ground stakes are properly installed and secured. Ensure all frame bolts are tightened.
• Difficulty with Netting/Curtains: Check the double-track system for any obstructions or damage. Ensure the rollers and sliders are clean and move freely.

6. Спецификации

7. Гаранция и поддръжка

7.1 Гаранция на продукта

For specific warranty details, including coverage period and terms, please refer to the warranty information provided with your product packaging or contact MELLCOM customer service directly. Keep your proof of purchase for any warranty claims.

7.2 Планове за разширена защита

Extended protection plans may be available for purchase to provide additional coverage beyond the standard manufacturer's warranty. Options include:

• 3-годишен план за защита: Предлага се за $224.99 (еднократно плащане).
• Пълна защита: Месечен план на цена от $16.99/месец, покриващ всички отговарящи на условията минали и бъдещи покупки.

Моля повторноview условията на всеки план за защита преди покупка.

7.3 Поддръжка на клиенти

If you have any questions regarding assembly, operation, maintenance, or require assistance with parts, please contact MELLCOM customer support. Contact information can typically be found in your product manual or on the official MELLCOM webсайт.
