Haier 445 L 2 Star Frost Free Bottom Mount Refrigerator

1. Важна информация за безопасност

Read all instructions before using the appliance. Keep this manual for future reference. Always disconnect the appliance from the power supply before cleaning or maintenance. Do not damage the refrigerant circuit. Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.

This refrigerator is designed for household use only. Ensure proper ventilation around the appliance. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

2. Продуктът свършиview

The Haier HRB-4952CKG-P is a 445-liter, 2-star frost-free bottom mount double door refrigerator. It features a convertible 14-in-1 design, Triple Inverter & Dual Fan Technology, a Digital Display Panel, and a Twist Ice Maker. Its unique bottom-mount freezer design, known as "Jhukna Mat," reduces bending for frequently accessed items.

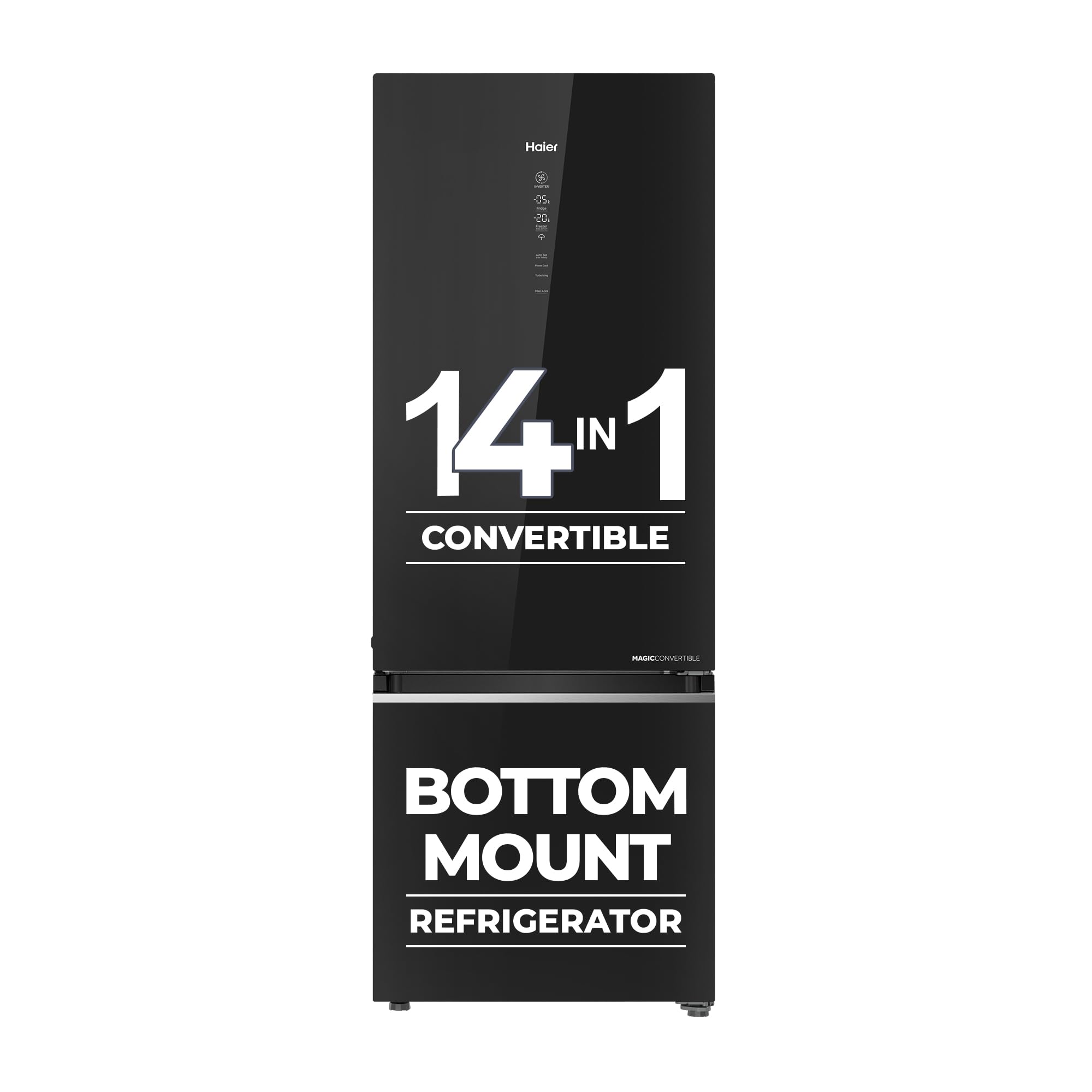

Фигура 2.1: Като цяло view of the Haier 445 L Bottom Mount Refrigerator.

3. Настройка и инсталация

3.1 Разопаковане

• Внимателно отстранете всички опаковъчни материали.
• Check for any damage during transit. If damaged, contact your retailer immediately.
• Ensure all included components are present: 1 unit Refrigerator, User Manual (accessible from brand website), and warranty information.

3.2 Поставяне

• Поставете хладилника върху твърда, равна повърхност.
• Оставете достатъчно място около уреда за правилна вентилация (поне 10 см отзад и отстрани).
• Избягвайте пряка слънчева светлина и източници на топлина.
• This is a freestanding installation type.

3.3 Размери

Figure 3.1: Refrigerator dimensions (Depth x Width x Height: 69.6D x 70.3W x 177.5H Centimeters).

3.4 Захранване

• Connect the refrigerator to a dedicated 230V AC power outlet.
• Уверете се, че захранващият кабел не е притиснат или повреден.

4. Инструкции за работа

4.1 Първоначално стартиране

After installation, wait for at least 2-4 hours before plugging in the appliance to allow the refrigerant to settle.

4.2 Цифров дисплей

The external digital LED touch panel allows you to control temperature settings and select modes without opening the refrigerator door, conserving energy.

Figure 4.1: External Digital LED Touch Panel for easy control.

4.3 14-в-1 конвертируеми режими

This refrigerator offers 14 convertible modes, allowing you to customize the temperature settings of both the fridge and freezer compartments to suit various needs, from daily use to special occasions or storage requirements.

Figure 4.2: Diagram illustrating the 14-in-1 convertible modes and their temperature settings.

4.4 Magic Cooling

The Magic Cooling feature ensures uniform 360-degree cooling throughout the refrigerator, helping to keep food fresh for extended periods.

Фигура 4.3: Интериор view highlighting the Magic Cooling system.

4.5 Jhukna Mat - Bottom Freezer Design

The bottom-mounted freezer design places the most frequently accessed refrigerator section at eye level, reducing the need to bend down by up to 90%.

Figure 4.4: Illustration of the ergonomic bottom-mount freezer design.

4.6 Triple Inverter & Dual Fan Technology

This technology ensures enhanced energy savings and efficient cooling performance by optimizing compressor and fan speeds based on cooling demand.

Figure 4.5: Diagram showing the Triple Inverter and Dual Fan system.

4.7 Twist Ice Maker & 1 Hour Icing Technology

The integrated Twist Ice Maker provides convenient access to ice. The 1 Hour Icing Technology accelerates ice formation, ensuring ice cubes are ready quickly.

Figure 4.6: Close-up of the Twist Ice Maker for easy ice dispensing.

4.8 Функции за съхранение

• 2x Bigger Vegetable Box: Осигурява ample space for storing a large quantity of vegetables.


Figure 4.7: The spacious 2x Bigger Vegetable Box.

• Separate Fruit Box: Dedicated compartment to keep fruits fresh and prevent odor mixing.


Figure 4.8: The dedicated Separate Fruit Box.

• Рафтове от закалено стъкло: Durable and sturdy shelves designed to hold heavy items.
• LED светлина: Interior LED lighting enhances visibility for easier access to food items.
• Дръжка с вдлъбнатина: Sleek and seamless handle design for effortless access.

5. Поддръжка и грижа

5.1 Почистване на интериора

• Изключете хладилника от контакта преди почистване.
• Use a soft cloth with a mild detergent and warm water to clean interior surfaces.
• Избършете с чиста кърпа.

5.2 Почистване на екстериора

The refrigerator features a glass finish which is scratch-resistant, rust-free, and easy to clean. Use a soft cloth and a non-abrasive cleaner. Avoid harsh chemicals.

5.3 Антибактериално уплътнение

The anti-bacterial gasket is removable for easy cleaning, helping to maintain hygiene and prevent bacterial growth.

5.4 Система за размразяване

This is a frost-free refrigerator with an automatic defrost system, eliminating the need for manual defrosting.

6. Отстраняване на проблеми

For common issues, refer to the troubleshooting section in the full user manual available on the Haier brand website. If problems persist, contact customer support.

7. Спецификации

Figure 7.1: Energy Savings Guide for Model HRB-4952CKG-P.

8. Гаранция и поддръжка

8.1 Гаранционна информация

Manufacturer warranty: 1 year on product, 10 years on compressor (Terms & Conditions Apply). Brand Warranty can be availed using your Amazon invoice.

8.2 Поддръжка на клиенти

For queries or assistance, contact Haier customer care:

• Telephone (Toll Free): 18004199999
• WhatsApp: +(91) 8553049999
• Имейл: customercare@haierindia.com

When contacting support, please provide the product's model name (HRB-4952CKG-P) and seller's details mentioned on your invoice. The brand's service center will allot you a convenient slot for service.
