Leehoos Emergency Crank Weather Radio Instruction Manual

1. Въведение

The Leehoos Emergency Crank Weather Radio is a versatile and essential device designed for emergency preparedness and outdoor activities. It combines multiple functionalities including NOAA weather alerts, AM/FM radio, a powerful flashlight, a reading light, an SOS alarm, and a power bank, all powered by various charging methods to ensure reliability in any situation.

2. Ключови характеристики

• NOAA метеорологична лента: Receive real-time weather alerts and forecasts.
• AM/FM радио: Stay informed and entertained with standard radio broadcasts.
• Множество източници на енергия: Hand crank, solar panel, USB-C charging, and AAA battery compatibility.
• Flashlight & Reading Light: Integrated lighting for various needs.
• SOS аларма: Audible and visual alarm for emergency signaling.
• Power Bank функция: Charge external devices via USB-A output.
• Компактен и преносим: Designed for easy carrying and storage.
• Устойчив на вода и прах: IP34 rating for durability in outdoor conditions.

3. Настройка

3.1 Първоначално зареждане

Before first use, fully charge the internal battery using one of the following methods:

• USB-C зареждане: Connect the provided USB-C cable to the radio's USB-C input port (located under the protective flap on the side) and to a USB power adapter (not included). The charging indicator lights will illuminate.
• слънчево зареждане: Place the radio with the solar panel facing direct sunlight. The solar indicator light will turn on when charging. This method is primarily for maintaining charge or slow charging.
• ръчна манивела: Rotate the hand crank on the side of the radio clockwise or counter-clockwise for approximately 1-2 minutes to generate initial power. The charging indicator lights will show progress.

3.2 AAA Battery Installation

For backup power, the radio can use 3 x AAA batteries (not included).

1. Unscrew the protective cap on the side of the radio to reveal the battery compartment.
2. Поставете 3 батерии тип AAA, като внимавате за правилната полярност (+/-).
3. Securely close the battery compartment and screw the cap back on to maintain water resistance.

3.3 Удължаване на антената

For optimal radio reception, extend the telescopic antenna located on the top of the unit.

4. Инструкции за работа

4.1 Включване/изключване

Press and hold the 'START' button to power the radio on or off.

4.2 Radio Modes (AM/FM/NOAA)

With the radio powered on, short press the 'START' button to cycle through AM, FM, and NOAA weather band modes.

4.3 Настройка

• Автоматично сканиране: In AM or FM mode, press and hold the 'NEXT' or 'LAST' button to automatically scan for the next available station.
• Ръчна настройка: Short press the 'NEXT' or 'LAST' button to manually adjust the frequency step-by-step.
• NOAA метеорологична лента: In NOAA mode, use 'NEXT' or 'LAST' to cycle through the 7 pre-programmed weather channels.

4.4 Контрол на звука

Use the 'VOL+' and 'VOL-' buttons to adjust the audio volume.

4.5 Функции на осветлението

Press the 'LIGHT' button to activate the lighting features:

1. First press: Activates the bright flashlight.
2. Second press: Activates the softer reading light.
3. Third press: Turns off the light.

4.6 SOS аларма

Press and hold the 'LIGHT' button to activate the SOS alarm. This will trigger a loud siren and a flashing red/blue light. Press and hold the 'LIGHT' button again to deactivate the SOS alarm.

4.7 Функция на преносимата батерия

To charge external devices, open the protective flap on the side of the radio and connect your device's charging cable to the USB-A output port.

4.8 Жак за слушалки

For private listening, connect 3.5mm headphones to the headphone jack located under the protective flap.

5. Демонстрации на продукти

изображение: The Leehoos Emergency Radio highlighting its five versatile power options: built-in rechargeable battery, AAA batteries, USB-C charging, hand crank, and solar panel. This ensures continuous operation in various scenarios.

изображение: The Leehoos Emergency Radio tuned to a NOAA weather frequency, demonstrating its capability to receive critical weather alerts. The display shows '162.425', indicating a specific NOAA channel.

изображение: The Leehoos Emergency Radio illustrating its three lighting modes: a bright flashlight for illumination, a softer reading light for close-up tasks, and an S.O.S. alarm with flashing lights for emergencies.

изображение: The Leehoos Emergency Radio showcasing its compact, pocket-sized design with dimensions of 4.13 inches in length, 2.79 inches in width, and 2.32 inches in height, making it highly portable.

изображение: The Leehoos Emergency Radio with its S.O.S. Light & Alarm activated, emitting a bright red flashing light to signal for help in emergency situations.

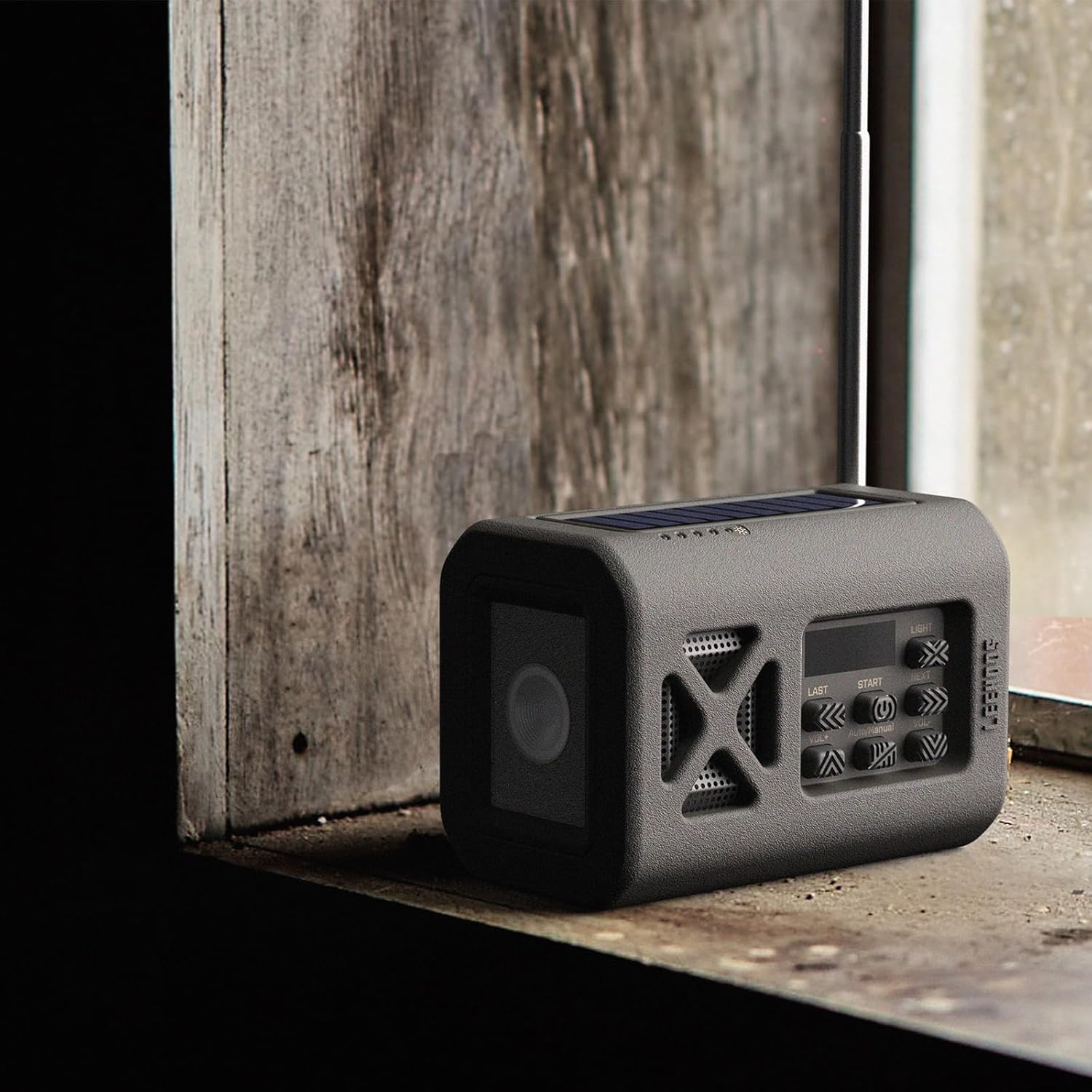

изображение: The Leehoos Emergency Radio positioned on a windowsill, illustrating its solar charging capability. The solar panel on top is exposed to light, indicating it is actively charging.

5.1 Официални продуктови видеоклипове

6. Поддръжка

• Почистване: Избършете радиото с мека, damp плат. Не използвайте силни химикали или абразивни почистващи препарати.
• Съхранение: Store the radio in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, ensure the internal battery is partially charged (around 50%) and remove any AAA batteries.
• Водоустойчивост: Ensure all port covers and battery compartments are securely closed to maintain IP34 water and dust resistance. This rating protects against splashing water and dust, but not immersion.

7. Отстраняване на проблеми

• Без захранване: Check battery level. Try charging via USB-C, hand crank, or solar panel. Ensure AAA batteries are correctly installed if using them.
• Слаб радиоприем: Fully extend the telescopic antenna. Try repositioning the radio. Ensure you are within range of broadcast signals.
• Flashlight/SOS Not Working: Ensure the radio has sufficient power. Press the 'LIGHT' button correctly (short press for light modes, long press for SOS).
• Device Not Charging (Power Bank): Ensure the radio has sufficient power. Check the USB cable and connection. Some devices may draw too much power or be incompatible.

8. Спецификации

9. Гаранция и поддръжка

For warranty information, technical support, or customer service inquiries, please refer to the contact details provided with your purchase or visit the official Leehoos webсайт. Запазете доказателството си за покупка за гаранционни рекламации.
