DD Audio 818F-D2 18" Subwoofer Instruction Manual

1. Въведение

Thank you for choosing the DD Audio 818F-D2 18" Dual 2-Ohm 7500W Subwoofer. This manual provides essential information for the proper installation, operation, and maintenance of your new subwoofer. Please read it thoroughly before proceeding with installation or use.

Продуктът е свършилview

The 818F-D2 subwoofer is engineered for high-performance car audio systems, featuring advanced thermal cooling enhancements and a robust design. It incorporates a vented aluminum voice coil insert and a finned aluminum heatsink to manage heat, ensuring extended periods of high-output performance. The design includes a tall surround, double-stitched to a fiberglass-loaded, non-pressed cone, and a double-layer spider for increased excursion (Xmax).

Какво има в кутията

• 1 x DD Audio 818F-D2 18" Subwoofer

2. Информация за безопасност

Always prioritize safety during installation and operation. Failure to follow these guidelines may result in injury or damage to equipment.

• Препоръчва се професионална инсталация: Ако не сте сигурни относно някоя част от процеса на инсталиране, консултирайте се с квалифициран специалист по автомобилно аудио.
• Изключете захранването: Always disconnect the vehicle's battery before performing any wiring or installation work to prevent electrical shorts.
• Правилно окабеляване: Ensure all wiring is correctly connected, insulated, and secured to prevent shorts, overheating, and fire hazards.
• Вентилация: Осигурете адекватна вентилация около субуфера и amplifier за предотвратяване на прегряване.
• Защита на слуха: High sound pressure levels can cause permanent hearing damage. Use hearing protection when operating the system at high volumes.
• Сигурен монтаж: Ensure the subwoofer is securely mounted within its enclosure and the enclosure is securely fastened in the vehicle to prevent movement during driving or in the event of an accident.

3. Настройка и инсталация

Correct installation is crucial for optimal performance and longevity of your subwoofer.

Изисквания към корпуса

The 818F-D2 is designed for use in a properly constructed enclosure. For ported enclosures, a volume of 5.0 to 7.0 cubic feet is recommended. Consult a car audio specialist or DD Audio's resources for specific enclosure designs and port tuning frequencies.

• Монтажен диаметър: 16.415 инча
• Монтажна дълбочина: 12.5 инча
• Frame Outer Diameter (OD): 18.25 инча
• Frame OD with Gasket: 18.5 инча

Окабеляване

The 818F-D2 features dual 2-Ohm voice coils, offering flexibility in wiring configurations to match your amplifier's stable impedance. Common configurations include:

• Натоварване от 1 ом: Wire both 2-Ohm voice coils in parallel. This configuration is suitable for amplifiers stable at 1 Ohm.
• Натоварване от 4 ом: Wire both 2-Ohm voice coils in series. This configuration is suitable for amplifiers stable at 4 Ohms.

Always verify your amplifier's minimum stable impedance before wiring. Incorrect impedance matching can lead to amplifier damage or reduced performance.

Физически монтаж

Ensure the subwoofer is securely fastened within the enclosure using appropriate hardware. The enclosure itself must be firmly mounted in the vehicle to prevent movement and potential damage. Allow sufficient clearance for the subwoofer's excursion and for air circulation around the motor structure.

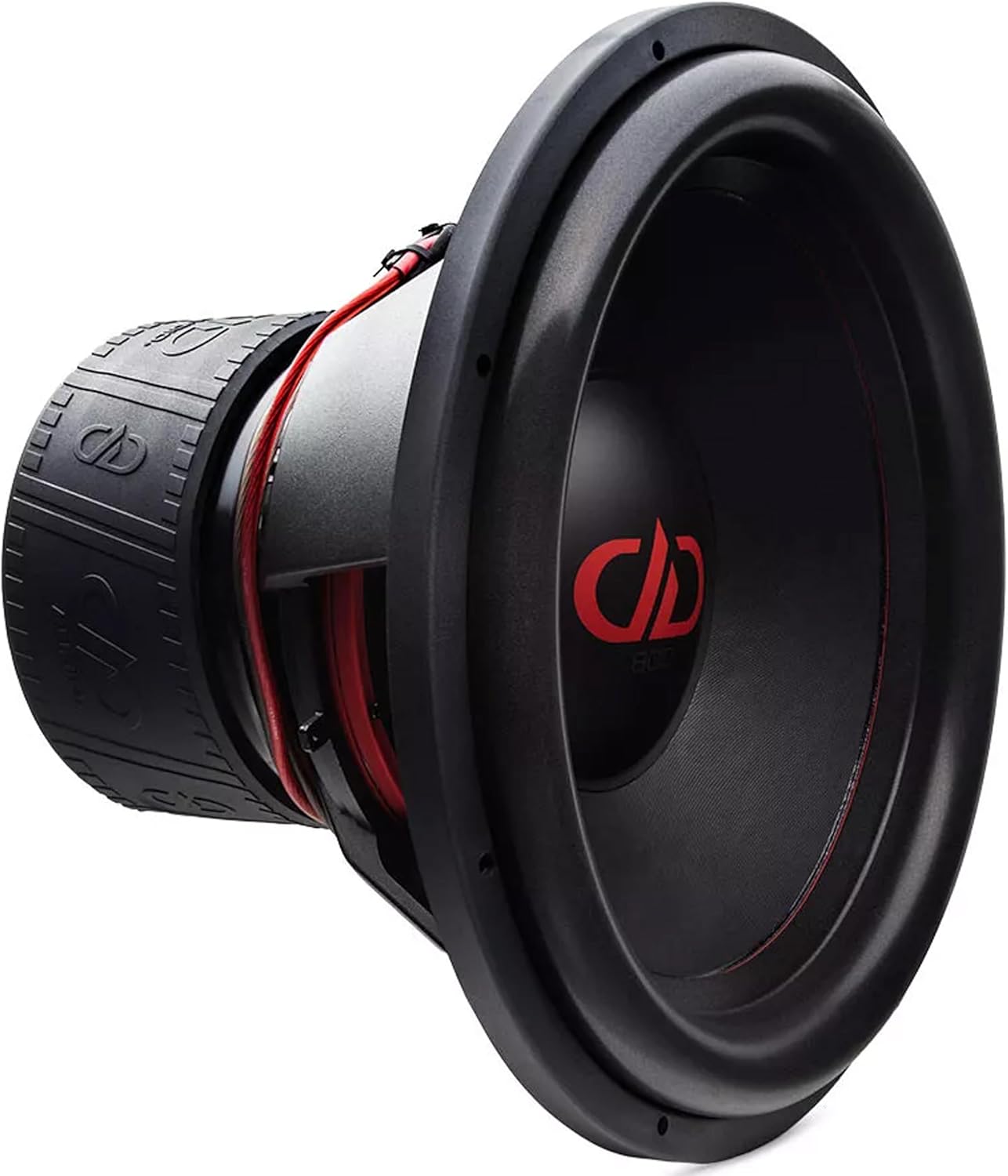

Това изображение показва страничния професионалистfile of the 818F-D2 subwoofer, illustrating the heavy-duty speaker terminals for secure wiring connections. Note the durable surround and cone design.

4. Инструкции за работа

Proper operation ensures the best sound quality and extends the life of your subwoofer.

Период на разработка

Allow a break-in period of approximately 20-30 hours of moderate listening before operating the subwoofer at its maximum potential. This allows the suspension components (surround and spider) to loosen up and reach their optimal compliance.

Управление на мощността

The 818F-D2 has a continuous RMS power rating of 2500 Watts and a peak power rating of 7500 Watts. It is crucial to match your amplifier's output to these ratings. Underpowering can be as damaging as overpowering, as it can lead to amplifier clipping, which produces a distorted signal that can overheat and damage the subwoofer's voice coil.

Аудио настройки

• Настройка на усилването: Задайте amplifier gain carefully. This is not a volume control but rather a level matching control. Use a multimeter or oscilloscope for precise gain setting to avoid clipping.
• Нискочестотен филтър (LPF): Настройте LPF на вашия amplifier or head unit to filter out high frequencies from the subwoofer. A common range is 60-80 Hz, but this can vary based on your system and preferences.
• Subsonic Filter (High-Pass Filter): Use a subsonic filter to protect the subwoofer from playing frequencies below its resonant frequency (Fs). For the 818F-D2 (Fs: 27 Hz), setting a subsonic filter around 25-30 Hz is recommended, especially in ported enclosures.
• Усилване на басите: Use bass boost sparingly, if at all. Excessive bass boost can quickly lead to clipping and damage.

5. Поддръжка

Regular, simple maintenance can help ensure the longevity and performance of your subwoofer.

Почистване

Keep the subwoofer cone and surround free of dust and debris. Use a soft, dry cloth to gently wipe surfaces. Avoid using harsh chemicals or excessive moisture.

инспекция

Periodically inspect the subwoofer for any signs of damage:

• Check the cone and surround for tears, cracks, or punctures.
• Ensure all wiring connections are secure and free from corrosion.
• Listen for any unusual noises or distortions during operation, which could indicate an issue.

This image displays the rear of the 818F-D2 subwoofer, featuring the advanced motor structure with integrated cooling fins designed to dissipate heat efficiently during operation. The DD Audio logo is prominently displayed on the motor boot.

6. Отстраняване на проблеми

Ако срещнете проблеми със събуфера си, вижте следните често срещани стъпки за отстраняване на неизправности:

Няма звук

• Проверете захранването: Осигурете amplifier is receiving power and is turned on.
• Сигнал за проверка: Уверете се, че amplifier is receiving an audio signal from the head unit.
• Проверете окабеляването: Inspect all speaker wires for proper connection and continuity. Ensure no wires are shorted.
• Amplifier Protection Mode: Ако amplifier is in protection mode, refer to its manual for troubleshooting.

Изкривен звук

• Настройка на усилването: Намалете amplifier gain. Distortion often indicates clipping.
• Настройки на кросоувъра: Adjust the low-pass filter to ensure the subwoofer is not playing frequencies too high for its design.
• Проблеми с огражденията: Check for air leaks in the enclosure or loose components.
• Overpowering/Underpowering: Осигурете amplifier's power output is appropriately matched to the subwoofer's RMS rating.

Прегряване

• Вентилация: Осигурете amplifier and subwoofer have adequate airflow.
• Impedance Mismatch: Verify the subwoofer is wired to a stable impedance load for your ampлифир.
• Изрязване: Намалете amplifier gain to eliminate clipping, which generates excessive heat.
• Обем на кутията: An enclosure that is too small or improperly tuned can cause the subwoofer to work harder and overheat.

7. Спецификации

Detailed technical specifications for the DD Audio 818F-D2 subwoofer:

8. Гаранционна информация

The DD Audio 818F-D2 subwoofer comes with a 1 години ограничена гаранция from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by improper installation, abuse, accidental damage, water damage, or unauthorized modifications. Please retain your proof of purchase for warranty claims.

9. Поддръжка

For technical assistance, warranty claims, or further information regarding your DD Audio 818F-D2 subwoofer, please contact DD Audio customer support or visit their official website. Ensure you have your product model number and proof of purchase available when seeking support.
