ZHUO HAO Metal Hilt RGB Pro Dueling Lightsaber Instruction Manual

1. Информация за безопасност

This product is CE/FCC safety certified and suitable for individuals over 8 years old. It features no sharp edges. Always supervise children under 12 years old during use. Keep the product away from naked flames or direct heat sources. The blade tip is not intended for eye contact.

2. Съдържание на пакета

Пакетът включва следните елементи:

• 1 x Lightsaber Hilt
• 1 x PC Blade (82cm/32in)
• 1 x Type-C кабел за зареждане
• 1 x Ръководство с инструкции
• 1 x Шестограмен ключ
• 4 x винтове

изображение: Illustration of the ZHUO HAO lightsaber package contents, showing the hilt, blade, charging cable, instruction manual, Allen key, and screws.

3. Настройка и зареждане

3.1. Монтаж на острието

1. Insert the PC blade into the emitter opening of the metal hilt.
2. Locate the two small screws on the hilt near the emitter.
3. Use the provided Allen key to gently tighten these screws until the blade is securely held in place. Do not overtighten to avoid damaging the blade.

3.2. Първоначално зареждане

Before first use, fully charge the lightsaber. The lightsaber features a 2000mAh battery with charge and discharge protection.

1. Unscrew the bottom part of the hilt to reveal the battery compartment and the USB-C charging port.
2. Свържете кабела за зареждане Type-C към порта.
3. Plug the other end of the cable into a suitable USB power source.
4. The lightsaber will automatically stop charging when the battery is full (approximately 2 hours for a full charge, providing about 4 hours of use).
5. Once charged, disconnect the cable and re-secure the bottom part of the hilt.

изображение: Подробно view of the lightsaber hilt's internal components, highlighting the 2000mAh battery, RGB chip, and porous design for enhanced sound.

4. Инструкции за работа

4.1. Включване/изключване

• To power on: Press and hold the main button on the hilt. The blade will illuminate and emit a power-on sound.
• To power off: Press and hold the main button again. The blade will retract and emit a power-off sound.

4.2. Color Changes

The lightsaber features 12 infinite color changes.

• While powered on, short press the main button to cycle through the available colors.

4.3. Sound Fonts and Volume

The lightsaber includes 16 cinematic sound fonts and 3 levels of volume adjustment (high, low, mute).

• To change sound fonts: While powered on, perform a quick twist of the hilt when the hilt is downward.
• To adjust volume: Consult the detailed instructions in the included manual for specific button combinations for volume control.

4.4. Motion Control Functions

The lightsaber is equipped with sensitive smooth swing and motion control features.

• Smooth Swing: The sound effects will change dynamically with the amplitude of your swing.
• Flash on Clash (FOC): The lightsaber will change color and emit a sound effect upon impact.
• Blaster Deflection: When wielding the lightsaber in the dark, it can stun and deflect blaster fire.
• Lock-up: Specific motion or button combinations can activate a lock-up effect. Refer to the manual for details.
• Motion Control for On/Off: Simple operation gestures can achieve all functions. For example, a quick twist to change sound font or play background music (BGM).

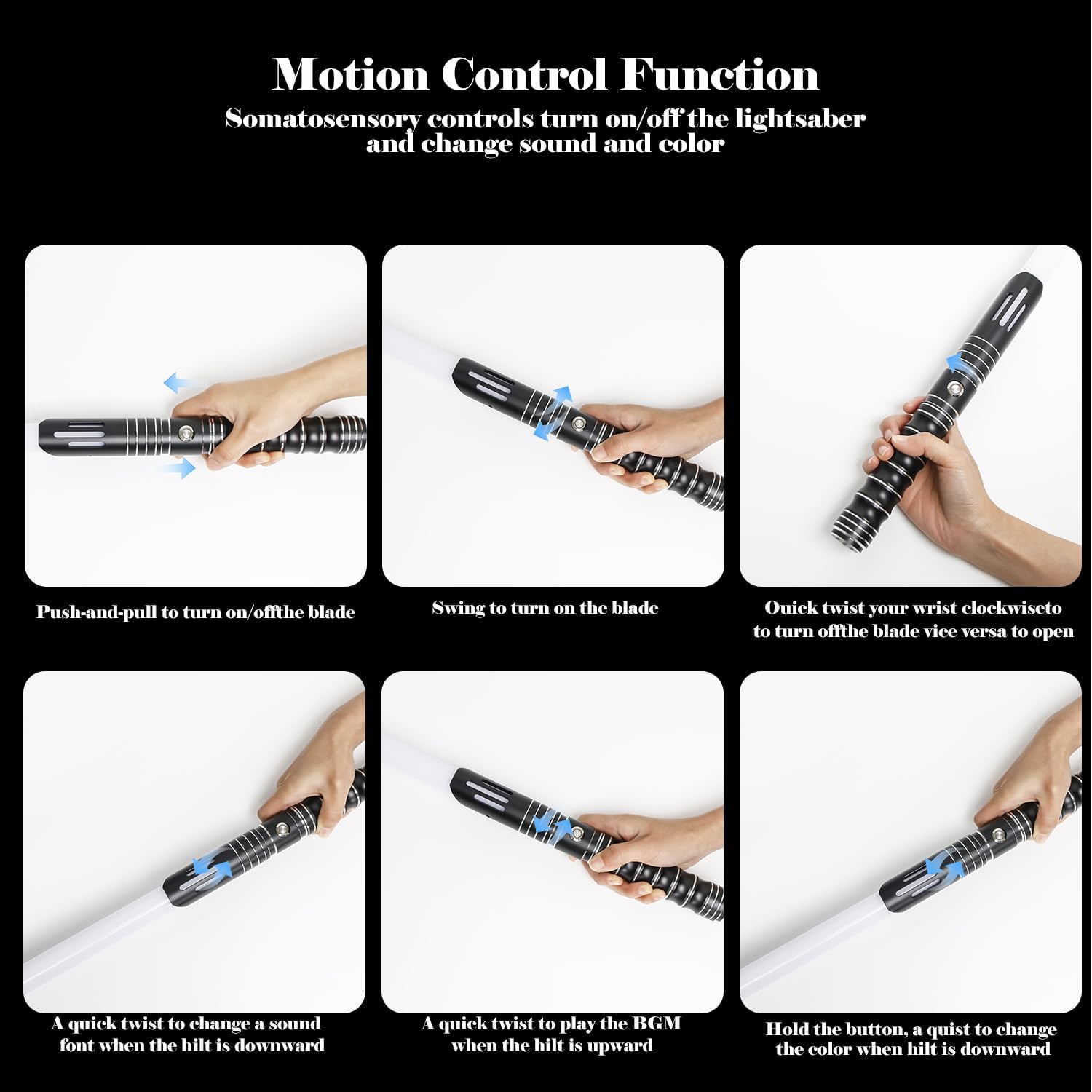

изображение: Visual guide illustrating different motion control gestures for operating the lightsaber, including turning on/off, changing sound fonts, and playing BGM.

5. Поддръжка

5.1. Почистване

Wipe the lightsaber hilt and blade with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the finish or electronic components.

5.2. Съхранение

Store the lightsaber in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) to prolong its lifespan.

5.3. Грижа за батерията

The 2000mAh battery is designed for durability. Avoid fully discharging the battery frequently. Recharge promptly when the lightsaber indicates low power. The built-in charge protection prevents overcharging.

6. Отстраняване на проблеми

• Lightsaber not turning on: Ensure the battery is fully charged. Check if the battery is properly seated in its compartment.
• Няма звук или силата на звука е ниска: Check the volume settings. Refer to the manual for specific instructions on adjusting volume or switching sound fonts.
• Blade is dim or flickering: Ensure the battery is fully charged. If the issue persists, ensure the blade is securely attached and the screws are tightened.
• Motion control not responding: Ensure the lightsaber is fully charged. Recalibrate motion control if necessary (refer to the full manual for advanced settings).

7. Спецификации

• Hilt Material: Метал Алуминий
• Материал на острието: High-impact, high-transparency PC (Polycarbonate)
• Дължина на острието: 82 см / 32 инча
• Диаметър на острието: 1 инча
• Total Product Dimensions: 40.6 x 1.8 x 1.79 инча
• Тегло на артикула: 1.5 паунда
• Капацитет на батерията: 2000mAh (нестандартна батерия)
• Време за зареждане: Приблизително 2 часа
• Време за използване: Приблизително 4 часа
• Color Changes: 12 infinite RGB colors
• Звукови шрифтове: 16 cinematic sound fonts
• Характеристики: Sensitive Smooth Swing, Flash on Clash (FOC), Lock-up, Blaster, Motion Control, 3 Volume Levels (high, low, mute), 3 BGM sets.
• Препоръчителна възраст: 8 years and up (Manufacturer recommended age: 12 months - 4 years, but product description states 8+ for safety).
• Сертификати за безопасност: CE/FCC

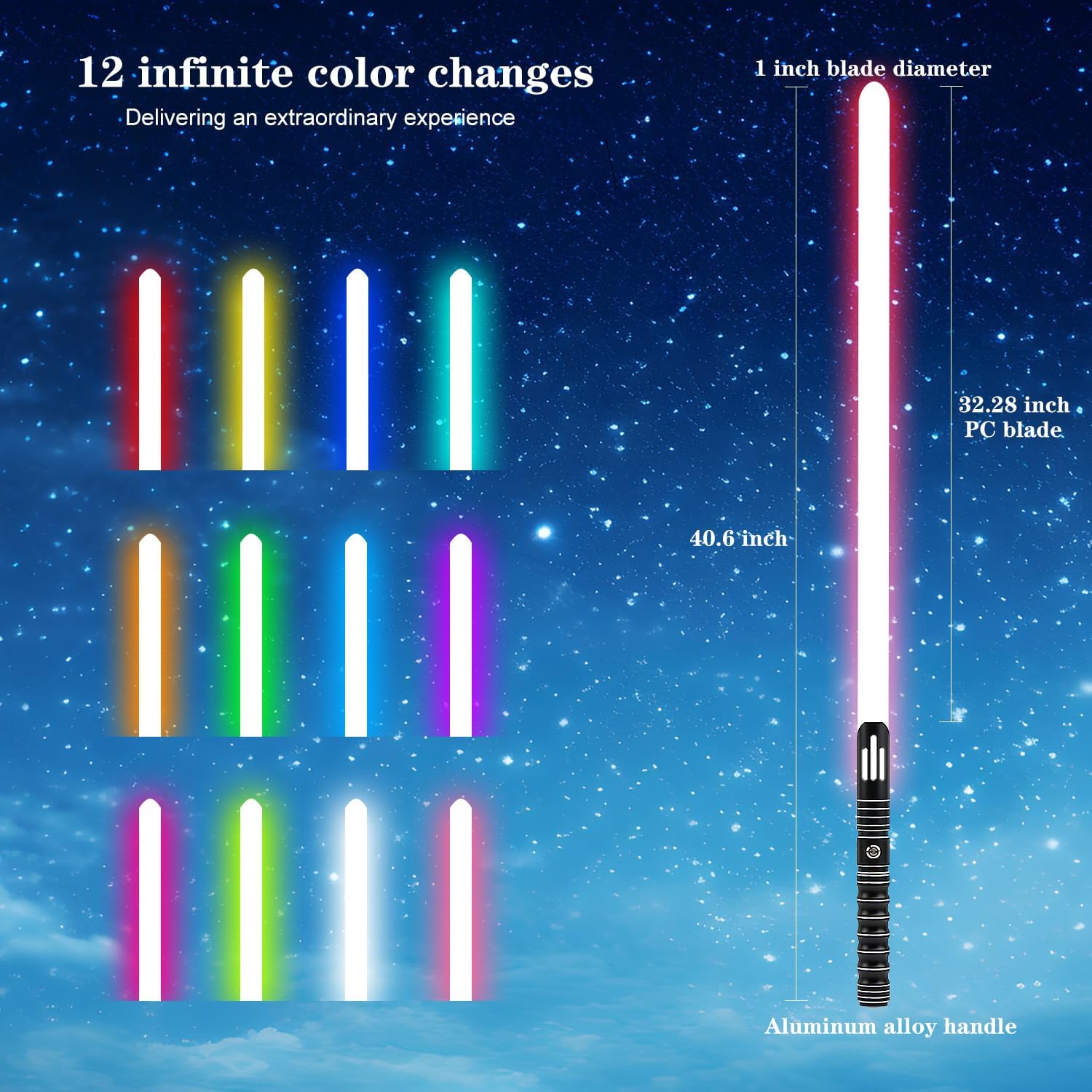

изображение: Visual representation of the lightsaber's dimensions (40.6 inches total length, 32.28 inch PC blade, 1 inch blade diameter) and a display of 12 infinite color options.

изображение: Comparative chart highlighting the advantages of the ZHUO HAO lightsaber, including heavier weight (300g), standard hilt ports for replaceable blades, and a sturdy 1-inch blade diameter.

8. Гаранция и поддръжка

For warranty information, technical support, or any inquiries regarding your ZHUO HAO lightsaber, please contact the seller directly through your purchase platform. Keep your proof of purchase for any warranty claims.
