HOROW HB-L02U-GE

HOROW Wall-Mounted Rimless Bidet Toilet

Model: HB-L02U-GE

Въведение

Thank you for choosing the HOROW Wall-Mounted Rimless Bidet Toilet. This product combines the functionality of a traditional toilet with the hygienic benefits of a bidet, offering a space-saving and comfortable solution for your bathroom. This manual provides essential information for the safe installation, operation, and maintenance of your new toilet. Please read it thoroughly before installation and use, and keep it for future reference.

Инструкции за безопасност

  • Уверете се, че всички водопроводни тръби са изключени, преди да започнете монтажа или поддръжката.
  • Professional installation is recommended for plumbing and wall-mounting to ensure stability and prevent leaks.
  • Do not use abrasive cleaners or harsh chemicals on any part of the toilet, as this may damage the surface or internal components.
  • Avoid excessive force when operating the bidet nozzle or seat to prevent damage.
  • Keep small children away from the toilet during operation and cleaning.

Съдържание на пакета

Моля, проверете дали всички компоненти са налични преди монтажа:

  • 1 x HOROW Bidet Toilet Unit
  • 1 x Wall Mounting Set
  • 1 x Инструкции за сглобяване

Настройка и инсталиране

The HOROW Bidet Toilet is designed for wall-mounted installation. Refer to the included assembly instructions for detailed steps and diagrams specific to your installation. Ensure the wall structure is adequate to support the weight of the toilet and user.

Key installation considerations:

  • Водни връзки: Connect both cold and hot water lines to the integrated bidet faucet.
  • Дренаж: Ensure proper connection to the waste pipe according to local plumbing codes.
  • Височина на монтаж: Adjust the mounting frame (not included) to the desired height before securing the toilet to the wall.
Diagram showing the dimensions of the HOROW wall-mounted bidet toilet, including width, depth, and height measurements in millimeters.
Figure 1: Product Dimensions. This diagram illustrates the precise measurements of the toilet unit, crucial for planning installation and ensuring compatibility with your bathroom space.

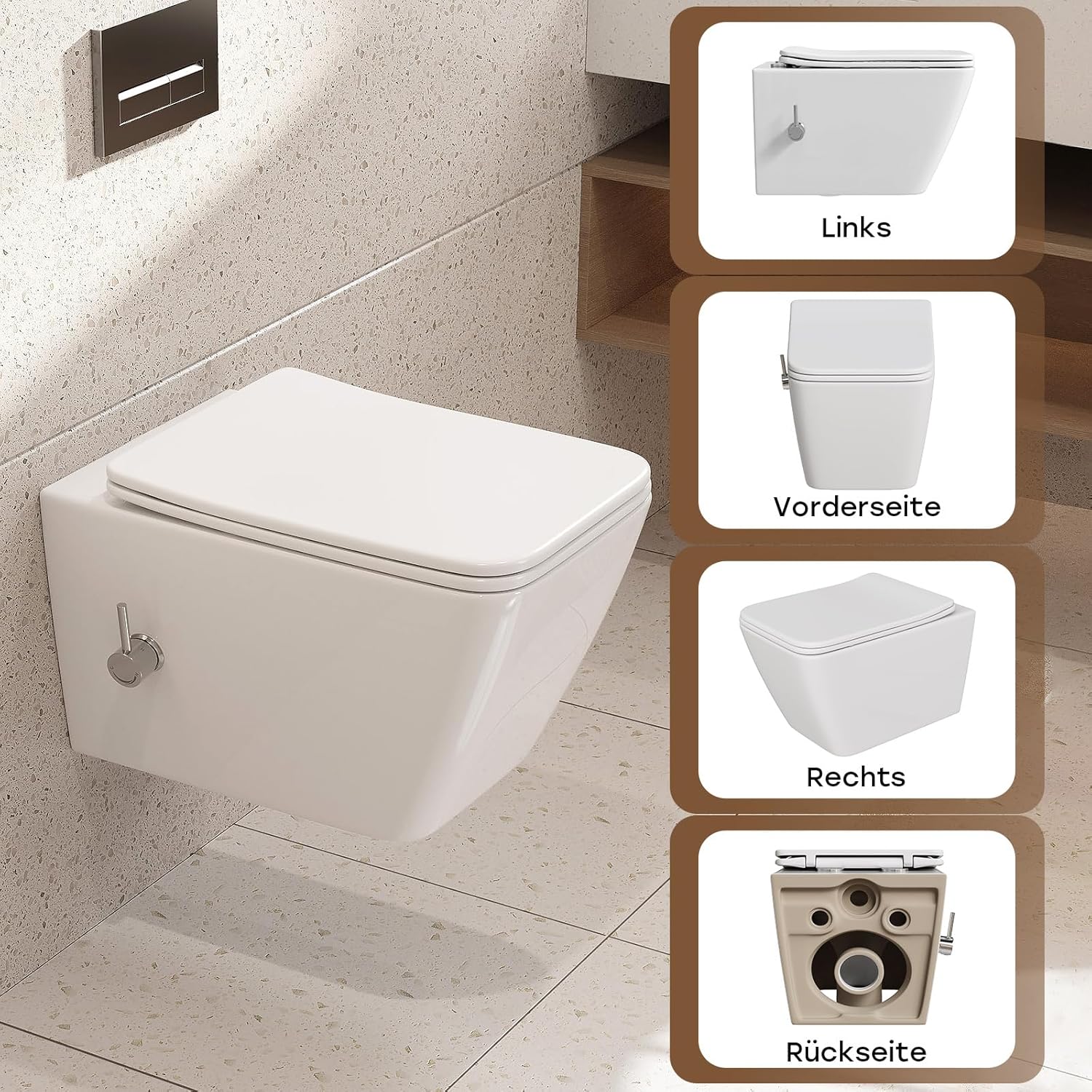

Множество views of the HOROW wall-mounted bidet toilet, showing the left side, front, right side, and rear connections.
Figure 2: Product Views. This image provides various perspectives of the toilet, including its side profiles, front, and the rear view detailing the water inlet and outlet connections for installation.

Инструкция за работа

Integrated Bidet Faucet and Nozzle

The bidet function is controlled by a handle located on the side of the toilet. This handle allows for precise control over water flow, temperature, and nozzle direction.

  • Water Flow and On/Off: Rotate the side handle to turn the water flow on or off and adjust its intensity.
  • Регулиране на температурата: The handle also allows you to mix cold and hot water to achieve your desired temperature. Move the handle towards the 'cold' or 'hot' indicator for adjustment.
Close-up of the side control handle on the HOROW bidet toilet, showing indicators for cold and warm water adjustment.
Figure 3: Side Control Handle. This image highlights the integrated handle for adjusting water flow and temperature (cold/warm) for the bidet function.
  • 360° регулируема дюза: The bidet nozzle can be manually rotated 360 degrees to direct the water jet precisely. This feature accommodates various cleaning needs and user preferences.
Close-up of the bidet nozzle showing water spraying and arrows indicating 360-degree manual rotation.
Figure 4: Adjustable Nozzle. This image demonstrates the bidet nozzle's capability for 360-degree manual rotation, allowing for flexible water jet direction.

Тоалетна седалка с плавно затваряне

The toilet seat is equipped with a soft-close mechanism. When closing the seat or lid, gently push it down, and it will lower slowly and quietly, preventing slamming and extending the product's lifespan.

Sequence of images showing the soft-close function of the toilet seat and how to detach it for cleaning.
Figure 5: Soft-Close Seat and Quick Release. This composite image illustrates the slow-closing mechanism of the toilet seat and the method for quick detachment, which aids in thorough cleaning.

Поддръжка

Regular cleaning and maintenance will ensure the longevity and hygiene of your HOROW Bidet Toilet.

  • Rimless Design: The rimless bowl design prevents dirt accumulation. Clean the bowl regularly with a soft brush and mild toilet cleaner.
  • Nano-Coated Surface: The high-quality ceramic and nano-coating make cleaning easy. Use a soft cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals that could damage the coating.
  • Почистване на дюзите: Periodically clean the bidet nozzle. You can gently wipe it with a soft cloth and mild soap. Ensure no debris obstructs the water flow.
  • Почистване на седалки: The UF material seat is durable and stain-resistant. Clean with a damp cloth and mild detergent. The seat can be easily detached for more thorough cleaning (refer to Figure 5).
Illustration of a toilet brush cleaning a rimless toilet bowl, highlighting the hygienic benefits of the design.
Figure 6: Rimless Cleaning. This image demonstrates the ease of cleaning the rimless toilet bowl, which prevents bacteria and dirt from accumulating in hidden areas.
Diagram illustrating the powerful 'superspin' flushing technology in a rimless toilet bowl.
Figure 7: Flushing Technology. This diagram shows the efficient 'superspin' flushing technology, ensuring thorough cleaning of the rimless toilet bowl with each flush.

Отстраняване на неизправности

If you encounter any issues with your HOROW Bidet Toilet, please refer to the following common troubleshooting tips:

проблемВъзможна причинаРешение
No water from bidet nozzleWater supply turned off; nozzle clogged; handle not fully open.Check water supply valves; clean nozzle; ensure handle is fully open.
Температурата на водата не се регулираHot/cold water supply issues; mixing valve malfunction.Verify hot/cold water supply; contact a plumber if issue persists.
Toilet seat slams shutSoft-close mechanism damaged or obstructed.Check for obstructions; if damaged, contact customer support for replacement parts.
Течове около връзкитеРазхлабени връзки; повредени уплътнения.Tighten connections carefully; replace seals if necessary. Professional assistance recommended.

Ако проблемът продължава след като сте опитали тези решения, моля, свържете се с отдела за обслужване на клиенти на HOROW.

Спецификации

The HOROW Bidet Toilet is designed with high-quality materials and features for optimal performance and durability.

  • Номер на модела: HB-L02U-GE
  • Размери (Д x Ш x В): 51.5 cm x 36 cm x 34 cm (20.3 in x 14.2 in x 13.4 in)
  • материал: Ceramic (toilet bowl), UF Plastic (seat)
  • цвят: Бяло
  • Тегло на артикула: 24.6 кг (54.2 фунта)
  • Метод на инсталиране: Стенен монтаж
  • Товароносимост: До 400 кг (880 фунта)
  • Характеристики: Rimless design, Nano-coating, 360° adjustable bidet nozzle, Cold/Hot water adjustment, Soft-close seat.
Infographic highlighting key features of the HOROW bidet toilet, including self-cleaning enamel, high-gloss glaze, powerful flush, high-temperature calcination, 400kg load capacity, and scientific water seal.
Figure 8: Product Features. This infographic details the high-quality attributes of the toilet, such as its self-cleaning enamel, powerful flushing system, and robust load capacity of up to 400kg.

Гаранция и поддръжка

HOROW products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official HOROW website. If you require assistance with installation, operation, or troubleshooting that is not covered in this manual, please contact our customer service team.

Обслужване на клиенти: Please refer to your purchase documentation for contact details.
