Garvee Space Heater User Manual - Model PTC909A

1. Важни инструкции за безопасност

Моля, прочетете внимателно всички инструкции, преди да използвате този уред. Неспазването на тези инструкции може да доведе до пожар, токов удар, нараняване или материални щети. Запазете това ръководство за бъдещи справки.

• Електрическа безопасност: Ensure the heater is plugged into a properly grounded 120V AC outlet. Do not overload electrical circuits. Avoid using extension cords unless absolutely necessary and ensure they are rated for the heater's wattage.
• Разположение: Place the heater on a firm, level surface. Maintain a minimum distance of 3 feet (0.9 meters) from walls, furniture, curtains, and other combustible materials. Do not block air inlets or outlets.
• Защита от прегряване: The heater is equipped with an automatic overheat protection system. If the heater overheats, it will automatically shut off. Unplug the heater, allow it to cool for 30 minutes, then plug it back in. If it continues to shut off, contact support.
• Защита срещу преобръщане: An integrated safety switch automatically turns off the heater if it is accidentally tipped over. Place the heater on a stable surface to prevent accidental tipping.
• Вода и влага: Не използвайте нагревателя на мокро или damp места, като бани, перални или близо до мивки. Никога не потапяйте нагревателя във вода.
• Деца и домашни любимци: Keep the heater out of reach of children and pets. Do not leave the heater unattended when in use.
• Поддръжка: Винаги изключвайте нагревателя от контакта, преди да го почиствате или извършвате каквато и да е поддръжка.
• Конструкция: The heater features flame-retardant ABS plastic construction for enhanced safety.

2. Продуктът свършиview

The Garvee PTC909A Space Heater is designed to provide efficient and versatile heating for various indoor spaces. It combines advanced ceramic heating technology with user-friendly features and multiple safety mechanisms.

Ключови характеристики:

• Двойни режими на отопление: Choose between 1500W for rapid heating or 750W for energy-efficient, consistent warmth.
• Регулируем термостат: Manually set your desired temperature for personalized comfort and energy savings.
• Компактен и преносим дизайн: Weighing approximately 2.2 lbs (1 kg) with a built-in carry handle, making it easy to move between rooms.
• Тиха работа: Operates at less than 45 dB, suitable for bedrooms, offices, and other quiet environments.
• Бързо нагряване: Ceramic heating elements provide warmth quickly, often within 3 seconds of activation.
• Целогодишно ползване: Includes a fan-only mode for circulating cool air during warmer months.
• Функции за безопасност: Equipped with tip-over protection, overheat protection, and a built-in safety fuse.

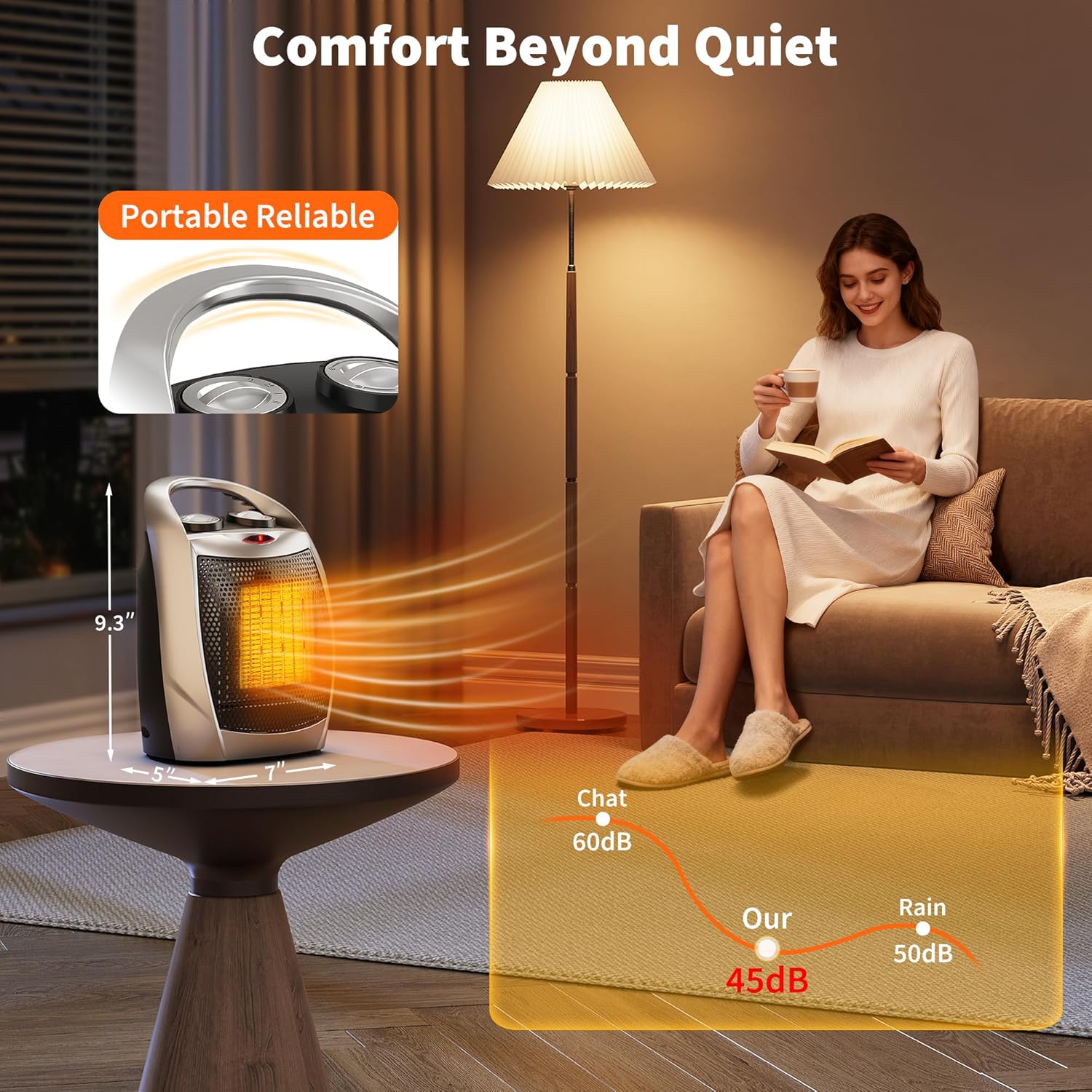

Figure 2.1: The Garvee heater features quiet operation and a convenient carry handle for portability.

Figure 2.2: The ceramic heating element provides instant warmth within 3 seconds.

Figure 2.3: The heater also functions as a fan to circulate cool air.

Figure 2.4: The heater offers multiple modes and can effectively warm areas up to 200 sq ft.

3. Настройка

Setting up your Garvee Space Heater is quick and easy.

1. Разопаковайте: Carefully remove the heater from its packaging. Retain packaging for storage or return if needed.
2. Разположение: Place the heater on a stable, flat, and heat-resistant surface. Ensure it is at least 3 feet (0.9 meters) away from any walls, furniture, curtains, or other flammable materials. Do not place it directly under a power outlet.
3. Захранване: Ensure the heater is in the 'OFF' position. Plug the power cord directly into a standard 120V AC, 60Hz grounded wall outlet. Do not use with power strips or extension cords unless they are specifically rated for high-wattagелектроуреди.

Figure 3.1: The compact design allows for placement in various rooms such as living rooms, bedrooms, and baby rooms.

4. Операция

Familiarize yourself with the control knobs to operate your heater effectively.

Figure 4.1: The control panel with power and thermostat knobs.

Контролен панел:

• Left Knob (Power/Mode Selector): This knob controls the power and operating mode. Rotate it to select:
  • ИЗКЛЮЧЕНО: Изключва нагревателя.
  • САМО ВЕНТИЛАТОР: Circulates cool air without heat.
  • MODE A (750W): Provides gentle, energy-efficient heat.
  • MODE B (1500W): Provides powerful, fast heating.
• Десен бутон (термостатно управление): This knob adjusts the desired room temperature. Rotate it clockwise to increase the target temperature and counter-clockwise to decrease it. The heater will cycle on and off to maintain the set temperature.

Оперативни стъпки:

1. Step 1: Start the Heater: Rotate the left knob (Power/Mode Selector) from 'OFF' to your desired heating mode (FAN ONLY, 750W, or 1500W). The power indicator light will illuminate.
2. Step 2: Set Desired Temperature: Rotate the right knob (Thermostat Control) to your preferred temperature setting. For continuous heating, turn the thermostat knob to its maximum setting. For automatic temperature control, set it to a specific temperature. The heater will turn off once the room reaches the set temperature and turn back on when the temperature drops.
3. Step 3: Turn Off: To turn off the heater, rotate the left knob (Power/Mode Selector) to the 'OFF' position. The power indicator light will turn off. Unplug the heater from the wall outlet when not in use.

5. Поддръжка

Regular cleaning and proper storage will ensure the longevity and efficient operation of your Garvee Space Heater.

• Почистване: Винаги изключвайте нагревателя от контакта и го оставете да се охлади напълно преди почистване. Използвайте мека,amp cloth to wipe the exterior surfaces. Do not use abrasive cleaners or solvents. Do not allow water to drip into the interior of the heater.
• Отстраняване на прах: Използвайте прахосмукачка с приставка за четка, за да отстраните внимателно праха от решетките за всмукване и изпускане на въздух.
• Съхранение: Когато не се използва, съхранявайте нагревателя на хладно и сухо място. Препоръчително е да го съхранявате в оригиналната му опаковка, за да го предпазите от прах и повреди.
• Грижа за кабела: Do not wrap the power cord tightly around the heater. Avoid kinking or damaging the cord.

6. Отстраняване на проблеми

If you encounter issues with your Garvee Space Heater, refer to the following common problems and solutions:

7. Спецификации

Detailed technical specifications for the Garvee PTC909A Space Heater.

8. Гаранция и поддръжка

Garvee products are manufactured to high-quality standards. For information regarding warranty coverage, product support, or service inquiries, please refer to the warranty card included with your purchase or contact Garvee customer service directly.

Please have your model number (PTC909A) and purchase date available when contacting support.
