HumsiENK 48V 100Ah LiFePO4 Golf Cart Battery User Manual

1. Въведение

Thank you for choosing the HumsiENK 48V 100Ah LiFePO4 Golf Cart Battery. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new battery. Please read this manual thoroughly before use and retain it for future reference.

This battery is designed for direct replacement in popular golf cart brands such as Club Car, EZGO, and Yamaha, and is also suitable for diverse applications including trolling motors, solar energy storage systems, RVs, and marine use.

Image: The HumsiENK 48V 100Ah LiFePO4 Golf Cart Battery, showcasing its compatibility with various golf cart models, along with the Bluetooth app and LCD monitor for real-time monitoring.

2. Инструкции за безопасност

Always prioritize safety when handling and operating the battery. Failure to follow these instructions can result in serious injury or damage to the product.

• Прочетете ръководството: Understand all instructions before installation or use.
• Правилна инсталация: Ensure correct polarity and secure connections to prevent short circuits.
• Вентилация: Although LiFePO4 batteries produce minimal gas, ensure adequate ventilation during charging and discharging.
• Избягвайте къси съединения: Не позволявайте метални предмети да пречупват клемите на батерията.
• Температурен диапазон: Operate and store the battery within the specified temperature ranges. The battery features low-temperature cut-off for charging at 32°F (0°C) and can discharge down to -4°F (-20°C).
• Без разглобяване: Do not attempt to open or disassemble the battery. This voids the warranty and can be dangerous.
• Зареждане: Използвайте само съвместими LiFePO4 зарядни устройства.
• Обработка: The battery is heavy (90.39 lbs). Use proper lifting techniques or assistance to avoid injury.
• Пожарна безопасност: Металът casing is fireproof. However, in case of fire, use a Class D fire extinguisher.

Image: The HumsiENK battery with its metal case, designed to defend against fire, shown in a rugged environment.

3. Характеристики на продукта

• High-Safety Grade-A Cells & Metal Casing: Здрав метал casing provides fireproof, impact-resistant, and excellent heat dissipation properties.
• Дълъг живот: Offers over 15,000 cycles and a 10-year service life.
• Integrated Forced Power Switch: Allows instant one-touch restart for resolving unexpected issues.
• Smart Dual Monitoring: Equipped with Bluetooth 5.0 connectivity for real-time monitoring via the HumsiENK app and an optional LCD monitor.
• Широко приложение: Compatible with golf carts, trolling motors, solar energy storage systems, RVs, and marine use.
• Мощна производителност: 5120Wh capacity, 12800W output power, 200A sustained discharge current, and 500A (1s) burst capabilities.
• Advanced 200A BMS: Provides comprehensive protection against overcharging, over-discharging, overload, short circuits, and high/low temperatures.
• Защита при ниска температура: Charging stops at 32°F (0°C) to protect the battery. Discharging is possible down to -4°F (-20°C).
• Компактен и лек: 62% lighter and 23% smaller than four 12V 100Ah lead-acid batteries, simplifying installation and reducing maintenance.
• IP65 рейтинг: Engineered for complete dust and water resistance.

Image: The battery's metal casing is shown to be vibration-proof, corrosion-proof, puncture-proof, and anti-collision, ensuring an assured ride.

Image: An illustration of the 200A BMS (Battery Management System) providing double protection against various electrical faults.

Image: The internal structure of the battery, emphasizing efficient heat dissipation for long-lasting performance, with a lifespan of over 15,000 cycles or 10 years.

4. Съдържание на пакета

При разопаковане, моля, проверете дали всички изброени по-долу артикули са включени и са в добро състояние:

• Батерия x1
• Battery Monitor Charging Cable x1
• M8 винт x8
• Plastic Insulation Cap x2

5. Спецификации

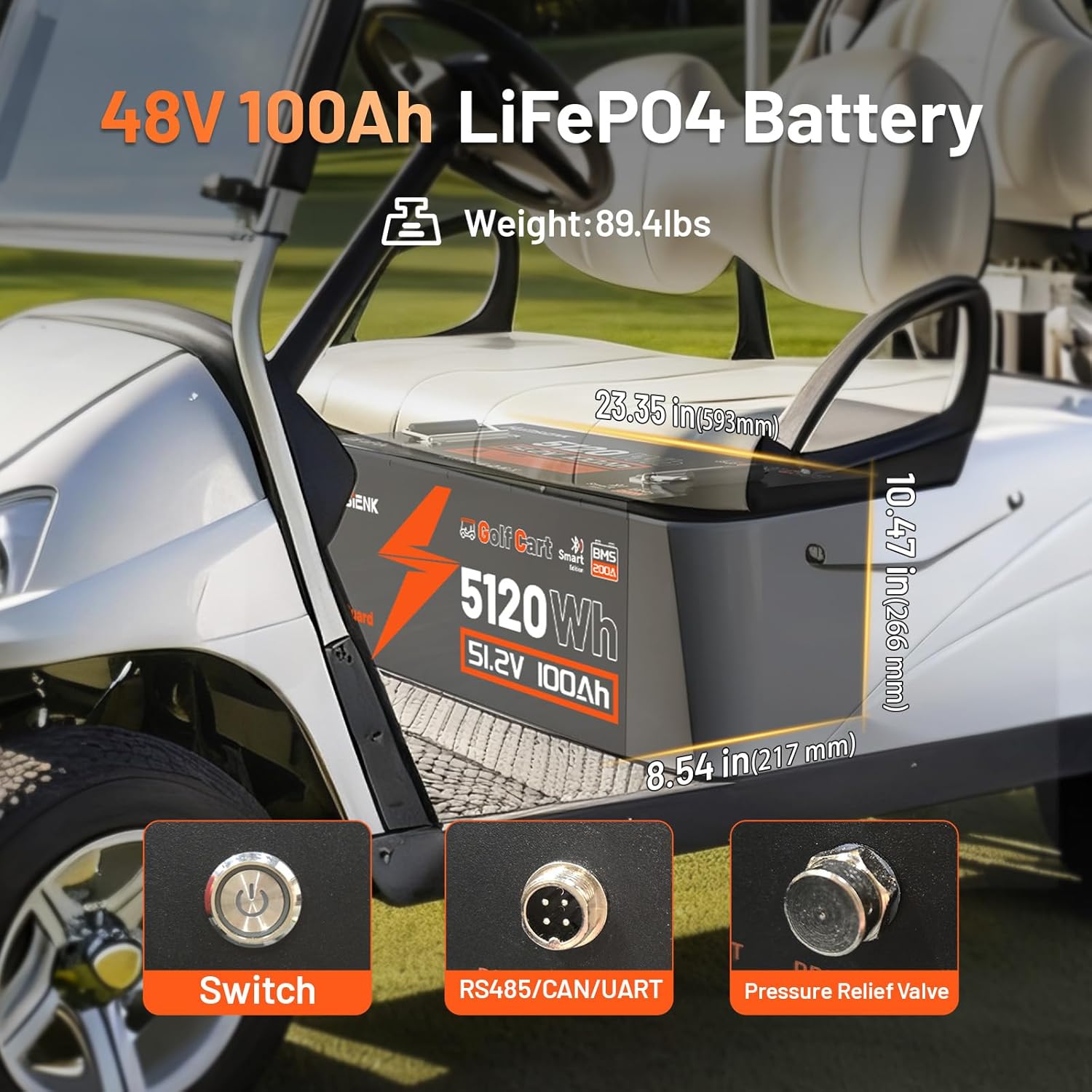

Изображение: Подробно view of the battery, highlighting its dimensions, power switch, communication ports (RS485/CAN/UART), and pressure relief valve.

6. Монтаж

The HumsiENK 48V 100Ah LiFePO4 battery is designed for simplified installation, often serving as a direct replacement for lead-acid batteries in golf carts.

6.1 Проверки преди инсталиране

• Ensure the golf cart or application is turned off and disconnected from any power source.
• Verify that the battery compartment is clean, dry, and free of debris.
• Confirm that the existing wiring is in good condition and compatible with the new battery's voltagд и настоящите изисквания.

6.2 Стъпки на инсталиране

1. Извадете старата батерия (ако е приложимо): Carefully disconnect and remove the old battery, noting the positive and negative terminal positions.
2. Position the New Battery: Place the HumsiENK battery securely in the battery compartment. Its compact size (23.35" x 10.47" x 8.54") is designed to fit most standard golf cart trays.
3. Свържете терминалите: Connect the positive (+) cable to the positive terminal and the negative (-) cable to the negative terminal. Use the provided M8 screws and ensure connections are tight and secure. Apply the plastic insulation caps to prevent accidental contact.
4. Сигурно окабеляване: Ensure all wiring is neatly routed and secured to prevent chafing or damage during operation.
5. Първоначално зареждане: Препоръчително е батерията да се зареди напълно преди първата ѝ употреба.

Video: This video demonstrates the physical dimensions of the HumsiENK 48V 100Ah Golf Cart Battery, its simplified wiring process for golf carts, and its performance capabilities including speed boost, continuous output, and hill-climbing ability. It also shows the Bluetooth app monitoring feature.

7. Операция

Operating your HumsiENK battery involves understanding its monitoring capabilities and performance characteristics.

7.1 Smart Dual Monitoring

The battery offers two ways to monitor its status:

• ПРИЛОЖЕНИЕ Bluetooth: Download the HumsiENK app (available for iOS and Android) to your smartphone. Connect via Bluetooth 5.0 to monitor real-time voltage, current, temperature, and other key parameters. The app also supports remote diagnostics and control of charging/discharging operations.
• LCD монитор: An optional LCD monitor (included with some packages) provides a continuous display of essential battery data.

7.2 Характеристики на изпълнението

• Обхват: Expect a remarkable 50+ mile range on a single charge in a golf cart application.
• Изходна мощност: The 5120Wh capacity and 12800W output power are designed to handle high-powered golf carts.
• Hill-Climbing: With a sustained discharge current of 200A and burst capabilities of 500A (1s), the battery provides ample torque for navigating hills and rough terrain.
• Време за зареждане: A full charge can be achieved in approximately 6.7 hours with a suitable charger.

Image: Golf carts demonstrating the battery's ability to conquer hills with significant peak power.

Image: An illustration of the battery's 5120Wh capacity providing power for daily life, including various appliances and their estimated run times.

8. Поддръжка

The HumsiENK LiFePO4 battery is designed for minimal maintenance, offering a long and reliable service life.

• Редовна проверка: Periodically check battery terminals for corrosion and ensure connections remain tight.
• Почистване: Keep the battery surface clean and dry. Use a damp кърпа, ако е необходимо.
• Управление на температурата: The built-in BMS includes low-temperature cut-off for charging at 32°F (0°C) and can discharge down to -4°F (-20°C). Avoid operating or storing the battery outside its recommended temperature range to maximize lifespan.
• Съхранение: If storing the battery for an extended period, ensure it is charged to approximately 50% state of charge and stored in a cool, dry place.
• Устойчивост на вода и прах: The IP65 rating ensures protection against dust and water jets, reducing the need for specific environmental maintenance.

9. Отстраняване на проблеми

This section provides general guidance for common issues. For complex problems, please contact HumsiENK customer support.

• Батерията не се зарежда:
  • Check charger connection and ensure it is a compatible LiFePO4 charger.
  • Проверете дали електрическият контакт работи.
  • Ensure ambient temperature is above 32°F (0°C) for charging.
• Без изходна мощност:
  • Check all cable connections for tightness and correct polarity.
  • Ensure the battery's integrated power switch is in the 'ON' position.
  • Check the battery's state of charge via the app or LCD monitor.
  • The BMS may have activated a protection mode (e.g., over-discharge, short circuit). Disconnect the load, wait a few minutes, and try restarting the battery with the power switch.
• Проблеми с Bluetooth връзката:
  • Уверете се, че Bluetooth е активиран на вашия смартфон.
  • Make sure you are within range of the battery.
  • Рестартирайте приложението или телефона си.

10. Гаранция и поддръжка

The HumsiENK 48V 100Ah LiFePO4 Golf Cart Battery comes with a comprehensive 5-годишна гаранция от производителя.

This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

For technical support, warranty claims, or any questions not covered in this manual, please contact HumsiENK customer service through the official webсайт или мястото, от което сте закупили.

Quality and safety are certified by leading international standards: IEC, ROHS, CE, FCC, UN38.3, and Class 9.
